£45.00

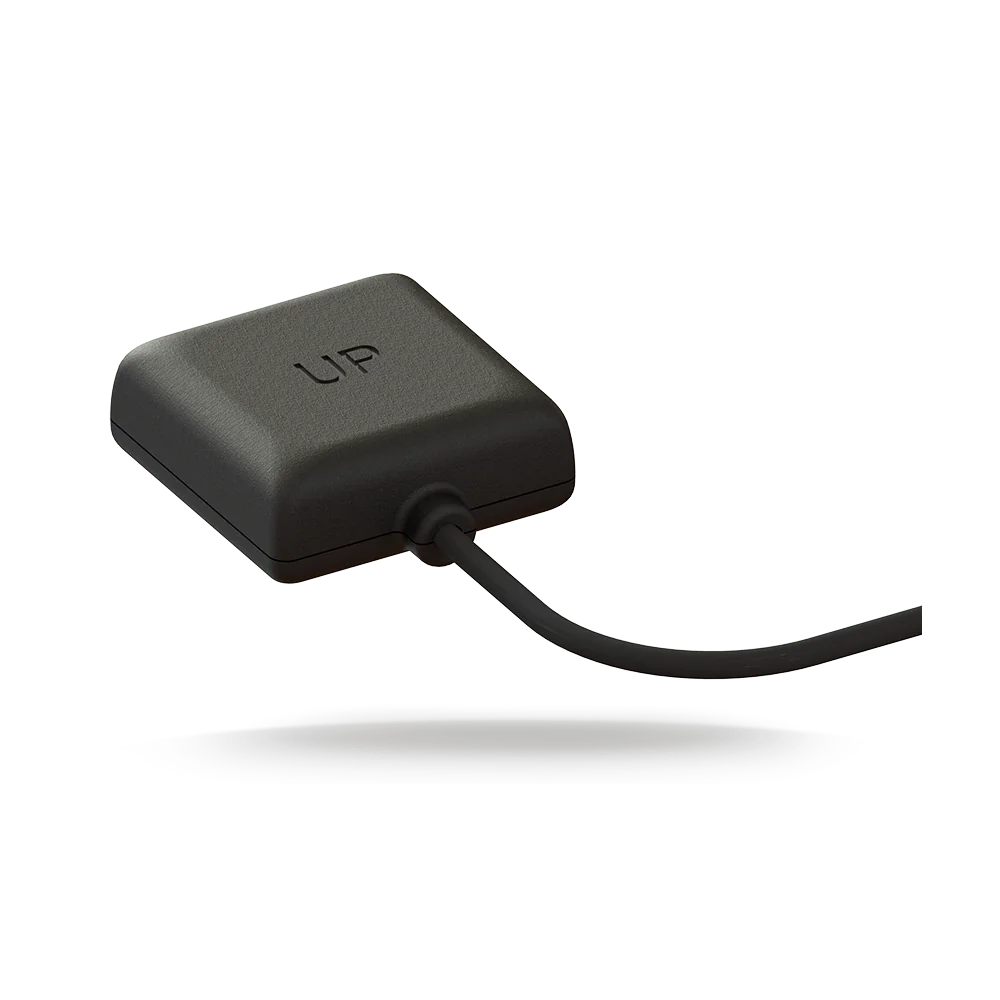

The J-IGA is a low profile internal GPS and GNSS antenna designed for discreet in vehicle installations where external antennas are not practical. Its compact form factor allows it to be positioned easily within the cabin without permanent vehicle modifications.
An integrated 30 dB low noise amplifier supports reliable satellite reception when connected to compatible GPS hardware. The antenna is supplied with both adhesive and hook and loop mounting options, making it suitable for permanent or temporary installations.
The J-IGA is best installed with a clear forward facing view through the windscreen and is intended for use with standard automotive glass. It provides a practical internal GPS solution for cars and light commercial vehicles where ease of installation and a clean exterior are priorities.
The J-IGA is a compact internal GPS and GNSS antenna designed to support global satellite navigation services across the 1562 to 1612 MHz band. It provides reliable positioning performance in space constrained installations where discreet mounting and consistent signal reception are required.
Designed for internal or covert installation, the J-IGA uses a low profile housing with an integrated high gain low noise amplifier. The antenna is supplied with an adhesive mounting pad for secure fixing, with hook and loop pads included for temporary or removable installations.
This is a straightforward plug and play GPS antenna focused on stable satellite reception, broad hardware compatibility, and simple installation.
Features
Compact internal GPS and GNSS antenna
Integrated 30 dB gain LNA
Adhesive and hook and loop mounting options included
Covers 1562 to 1612 MHz GNSS band
SMA Plug connector
Benefits
Compatible with GPS and GNSS receivers requiring active antennas
Supports reliable positioning in enclosed or vehicle installations
Eliminates the need for external roof mounted GPS antennas
Applications
GPS and GNSS receivers
Telematics and tracking systems
Industrial and automotive platforms
| Category | Parameter | Specification |
|---|---|---|
| Electrical | Frequency Range | 1562 to 1612 MHz |
| Operational Bands | GPS and GNSS | |
| Gain | LNA: 30 dB | |
| VSWR | Less than 2.0:1 at 1575 MHz plus or minus 4 MHz | |
| Polarisation | Right hand circular | |
| Impedance | 50 ohm | |
| Operating Voltage | 3 to 5 V DC via coax | |
| Current Consumption | Less than 20 mA typical | |
| Mechanical | Dimensions | 34.6 × 34.6 × 13.2 mm |
| Operating Temperature | −40 to +80 °C | |
| Material | ABS | |
| Colour | Black | |
| Mounting | Fixing Method | Adhesive pad with hook and loop |
| Cable | Cable Type | RG174 |
| Cable Length | 3 m | |
| Connector | SMA male | |
| Product Info | Manufacturer | Panorama Antennas |
| In CarPC Part Number | J-IGA / JIGA | |
| Panorama Part Number | GPSSV-3SMAP |
The Panorama Datasheet is available here
