£54.01

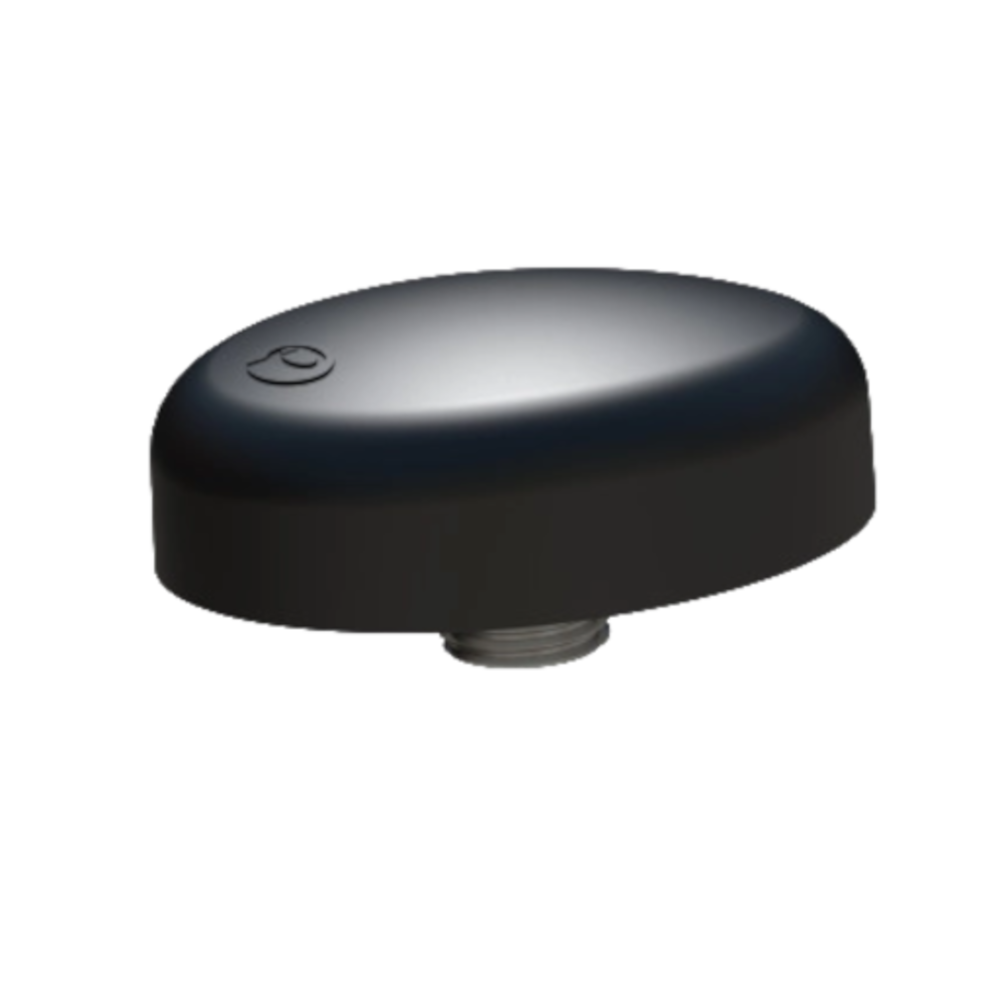

The J-EGR panel-mounted antenna offers high performance GPS & GLONASS in a discreet and tough housing. Mounted on the roof of a vehicle with a single-hole installation, the J-EGR enjoys a complete view of the sky, unhindered by other parts of the vehicle. The low profile design reduces the risk of damage.
The J-EGR is an active antenna, incorporating a built-in Low Noise Amplifier (LNA) which amplifies the GPS signal by 26 dB.
Although a ground plane is preferable, the antenna can be installed onto non-metallic roofs.
1562-1612 MHz
GPS & GLONASS
LNA: 26 dB
<2.0:1 @ 1575 MHz +/- 4 MHz
Right hand circular
3 – 7 V DC (fed by vehicle PC/router via GPS coax cable)
14 mA
Height: 18.5 mm
Length: 60 mm
Width: 50 mm
-40 to +80 °C
High impact UV stable ABS
Black
Fixing: Panel mount
Hole diameter: 15 mm
Cable length: 0.3m protruding from base of antenna plus 6m extension cable
Cable type: Standard
Connector: FME female at end of 0.3m cable, SMA male at end of 6m extension cable
Panorama Antennas
In-CarPC Part No: J-EGR / JEGR
Panorama Part No: GPSGP-F plus C74-FP-6-SMAP cable.
