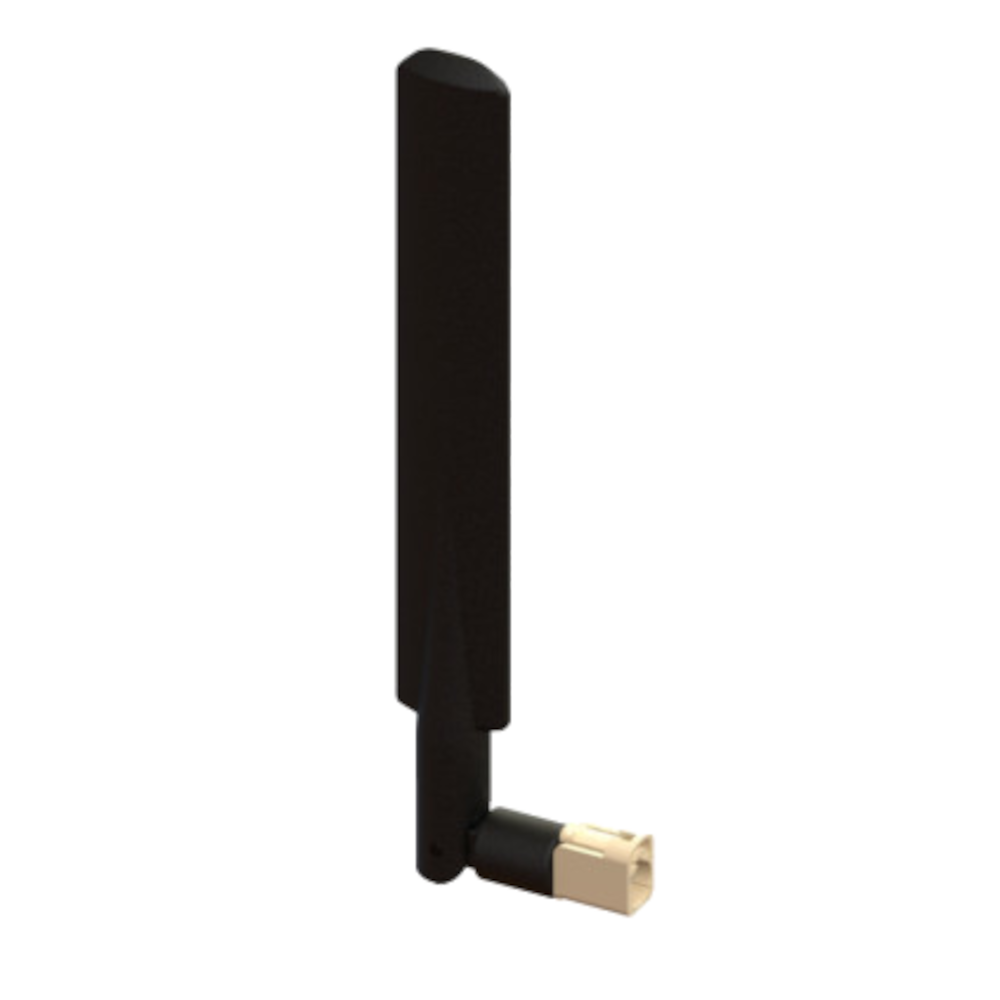

2.4 & 5 GHz Wi-Fi Direct-Connect Antenna with Fakra Connection (J-IW5S)

2.4 & 5 GHz Wi-Fi Direct-Connect Antenna with Fakra Connection (J-IW5S)
2.4 & 5 GHz Wi-Fi Direct-Connect Antenna with Fakra Connection (J-IW5S) - Image 2

The J-IW5S is a dual-band (2.4 & 5 GHz) Wi-Fi antenna which connects directly to the XR routers.  We recommend a direct-connection antenna such as the J-IW5S when Wi-Fi communication will be taking place entirely within the vehicle (e.g. between an in-vehicle router and other on-board mobile devices).

Description

The J-IW5S antenna is a ground plane independent antenna covering 2.4 / 5.0GHz. Designed as an ‘on device’ antenna, the J-IW5S features an articulated FAKRA connector that offers great flexibility for optimum antenna positioning, with a sleek profile for low visual impact.

The J-IW5S normally allows a router to communicate with external networks or devices that are close to the vehicle, but for longer range communication and better performance an external antenna is recommended.

Frequency Ranges (MHz) 2.396-2.485 / 4.9-6.0GHz
Peak Realised Gain 2.4GHz 3dBi
5.0GHz 5dBi
VSWR <2.5:1
Polarisation Vertical
Patten Omni-directional
Impedance 50Ω
Max Input Power (W) 10
Dimensions (mm) Length 163 (6.4”)
Width 22 (0.8”)
Thickness 7 (0.27”)
Operation Temperature (°C) -40 to +70
Material ASA
Colour Black
Connection Type Fakra (Beige)
Manufacturer Panorama
In-CarPC Part Number J-IW5S / JIW5S
Panorama Part Number PWB-24-58-RFIJ

The Panorama Datasheet is available here
