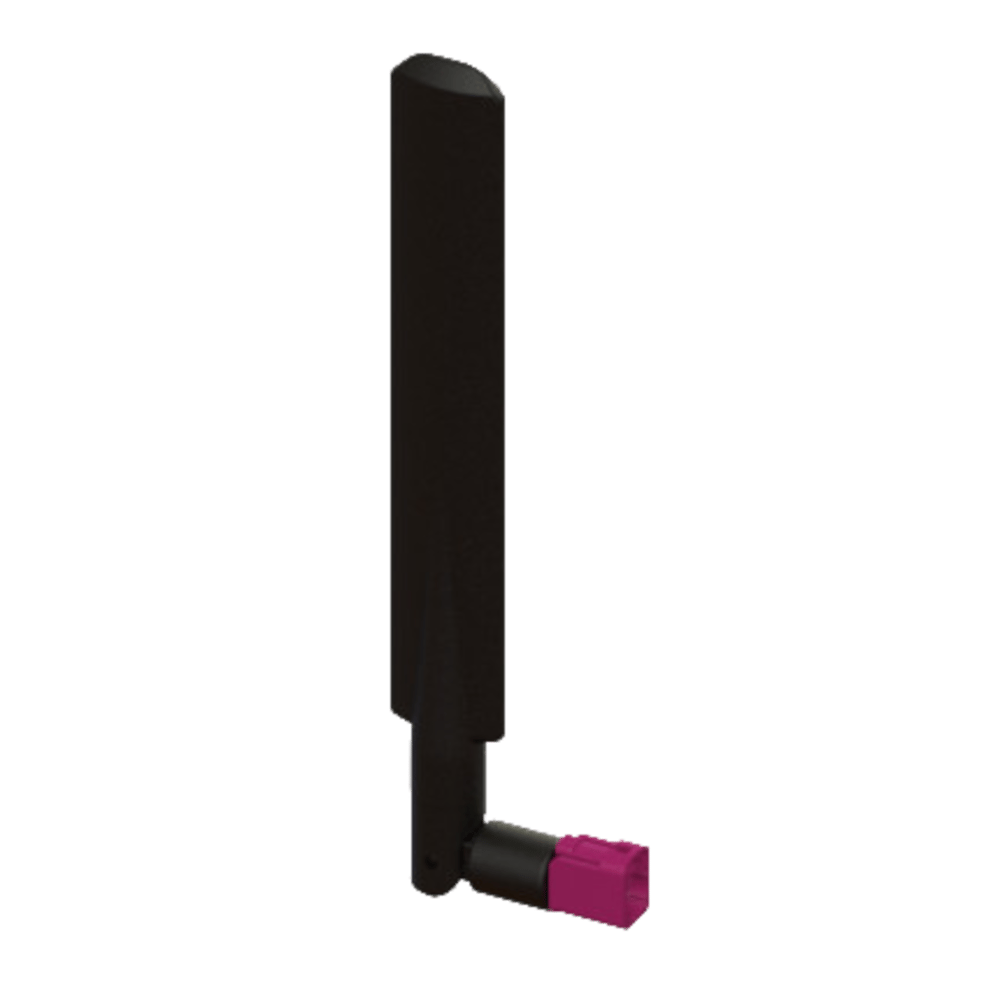

4G/5G Paddle Antenna with Fakra Connection (J-I5S)

4G/5G Paddle Antenna with Fakra Connection (J-I5S)

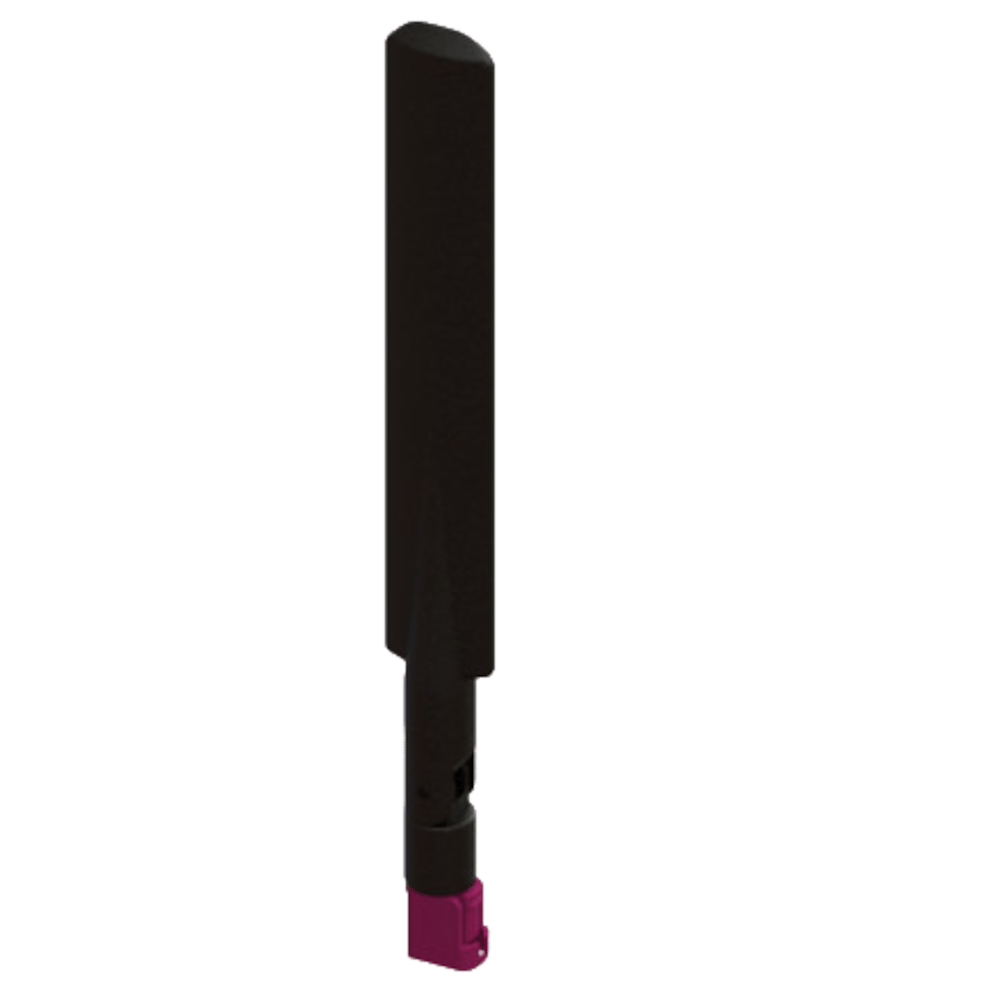

4G/5G Paddle Antenna with Fakra Connection (J-I5S) - Image 2

The J-I5S is a 4G/5G paddle antenna which connects directly to the XR routers.  The J-I5S is ideal for testing purposes, desk-based applications, or where the equipment to which the antenna connects is located in a favourable location for broadcasting/receiving cellular data.

Description

The J-I5S antenna is a ground plane independent antenna covering global cellular frequency bands (2G/3G/4G/5G) from 698 MHz up to 3800 MHz.

Designed for modems and routers with FAKRA connector, the J-I5S has an articulated FAKRA D Jack for flexible positioning and a sleek profile for low visual impact.

Please note that we do not generally recommend this antenna for vehicle installations, as the on-board equipment to which it connects is often installed in a non-optimal location for the antenna.

Frequency Ranges (MHz) 698-960, 1710-2170, 2396-2700, 3400-3800
Operational Bands 700-3800 MHz
Peak Realised Gain 5dBi (Varies with frequency)
VSWR <3:1
Polarisation Vertical
Patten Omni-directional
Impedance 50Ω
Max Input Power (W) 10
Dimensions (mm) Length 163 (6.4”)
Width 22 (0.8”)
Thickness 7 (0.27”)
Operation Temperature (°C) -40 to +80
Material ASA
Colour Black
Connection Type Fakra (Violet)
Manufacturer Panorama
In-CarPC Part Number J-I5S / JI5S
Panorama Part Number PWB-BC3G-38-RFDJ

The Panorama Datasheet is available here
