XR60 5G (Cat 20) Vehicle Router (Optional Wi-Fi 6, Up to 32 clients)

XR60 5G (Cat 20) Vehicle Router (Optional Wi-Fi 6, Up to 32 clients)
XR60 5G (Cat 20) Vehicle Router (Optional Wi-Fi 6, Up to 32 clients) - Image 2
XR60 5G (Cat 20) Vehicle Router (Optional Wi-Fi 6, Up to 32 clients) - Image 3
XR60 5G (Cat 20) Vehicle Router (Optional Wi-Fi 6, Up to 32 clients) - Image 4
XR60 5G (Cat 20) Vehicle Router (Optional Wi-Fi 6, Up to 32 clients) - Image 5

From: £859.00

The Semtech® AirLink® XR60 is one of the world’s smallest and toughest 5G routers – purpose-built for fixed and mobile mission-critical connectivity.
Delivering ultra-fast 5G performance, Wi-Fi 6, and secure remote management, the XR60 ensures always-on communication for vehicles, field operations, and industrial installations.

Compact yet powerful, it features:

  • 5G + LTE (4G) connectivity with advanced security

  • 2×2 MIMO Wi-Fi 6 for high-speed wireless access

  • Single or Dual Ethernet (1 Gbps / 5 Gbps) and Serial options

  • IP64-rated rugged design for harsh environments

  • Dual-Band GNSS (GPS) for precision location

  • 5 Years of AirLink Complete for remote monitoring, updates, and support

Ideal for public safety fleets, field service, utilities, and fixed wireless access applications.

  • *Router Model

    Select between Dual Ethernet, Serial Port and/or WiFi

    *Do you require GNSS/GPS?

    Antenna Options

    Select the options above first to view relevant antennas

    *Cellular
    *Wi-Fi
    *GNSS/GPS

    Other Accessories

Description

The Semtech® AirLink® XR60 is one of the world’s smallest, most rugged, and high-performance 5G routers – purpose-built for fixed and mobile mission-critical applications.

Whether you’re equipping public safety vehicles, managing utility fleets, or deploying industrial IoT in harsh environments, the XR60 delivers secure, reliable, and future-proof connectivity in a tiny, robust form factor.

Key Features at a Glance

  • 5G + LTE Cat-20 with 4×4 MIMO – ultra-fast speeds up to 2.8 Gbps downlink, 900 Mbps uplink
  • Optional Wi-Fi 6 (2×2 MIMO) for high-speed dual-band connectivity (2.4 & 5 GHz)
  • Compact yet powerful – fits into tight spaces like vehicle dashboards and control cabinets
  • IP64-rated, MIL-STD-810H tested for extreme durability (shock, vibration, temperature, humidity)

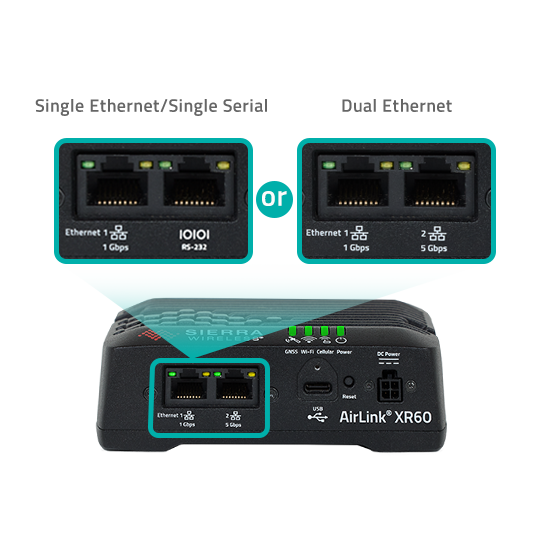

  • Single or Dual Ethernet options:
    • 1 Gbps Ethernet + Serial, or
    • Dual Ethernet (1 Gbps + 5 Gbps)
  • Dual-Band GNSS with precision GPS capabilities
  • USB-C with 5 Gbps LAN + Power Delivery for redundant, reliable power input
  • Built-in Edge Intelligence with containerised app support (Docker)
  • Backed by AirLink OS and secure remote management via ALMS

Vehicle Integration Features

  • Ignition Sense Control: Configurable ignition input with programmable delay shutdown – ensures safe, automatic power sequencing with vehicle start/stop.
  • Low Voltage Disconnect: Protects vehicle batteries by shutting down the router below preset voltage thresholds.
  • Power Protection: Built-in protection against power transients, including 5 VDC engine cranking and +200 VDC load dump events.
  • Dual Power Inputs: Primary 7–36 VDC supply with redundant 45 W USB-C power for continuous operation during engine start or power interruptions.
  • Rugged Vehicle Certification: Tested to MIL-STD-810H and SAE J1455 for shock, vibration, and electrical performance in mobile environments.
  • Automotive Compliance: E-Mark (UN ECE Regulation 10.05) and ISO 7637-2 compliant – suitable for professional fleet and emergency vehicle installations.
  • Environmental Resilience: IP64-rated sealed aluminium housing, operating from -40°C to +75°C (non-Wi-Fi variant).
  • Compact Installation: 118 × 39 × 98 mm chassis with standard RV bolt pattern and optional DIN-rail mount for easy in-vehicle fitment.

Built for Harsh Environments & Mission-Critical Use Cases

  • Certified for Vehicle Use (E-Mark), Railway (EN50155), and Hazardous Environments (Class 1 Div 2, IECEx, ATEX)
  • Operating temperature: -40°C to +75°C (non-Wi-Fi variant)
  • Long life expectancy: MTBF up to 283,666 hours (~32 years)

Ideal Applications

  • Public Safety Vehicles (Police, Fire, EMS/Ambulance)
  • Utility & Service Fleets (Trucks, Repair Vans)
  • Fixed Industrial Sites (Smart Cities, Energy, Manufacturing)
  • Edge IoT & Remote Deployments (Remote learning, surveillance, telemetry)
  • Fixed Wireless Access – High-speed broadband in underserved areas

Advanced Security & Management

  • Stateful firewall, WPA2/3 encryption, 802.1X, and FIPS 140-2 compliant VPN
  • Includes AirLink Complete (5-Years Free):
    • Remote monitoring via ALMS
    • Extended warranty & expert support
    • Secure out-of-band management

What’s in the Box?

  • XR60 Router
  • DC Power Cable
  • 1M RJ45 Ethernet Cable
  • Quick Start Guide
  • AirLink Complete Leaflet
    Optional accessories available: DIN rail kits, AC adapter, antennas

Why Choose XR60 from In-CarPC?

As a trusted AirLink Integrator, In-CarPC provides:

  • Expert integration with vehicle power systems & embedded PCs
  • Antenna selection and installation support
  • Ongoing technical guidance and deployment services

Dimensions & Footprint

  • Size: 118 x 39 x 98 mm
  • Weight: 522g (with Wi-Fi)
  • Mounts using RV-standard bolt pattern
  • Perfect for dashboard, console, or cabinet mounting
KEY FEATURES
Cellular Radios 5G + LTE Cat-20 (Global) – up to 2.8 Gbps DL / 900 Mbps UL
Wi-Fi Optional 2×2 MIMO Wi-Fi 6 (2.4 GHz & 5 GHz, AP / Client mode, up to 1200 Mbps)
Ethernet 1 × RJ45 (1 Gbps) – Single Serial variant
or 2 × RJ45 (1 Gbps + 5 Gbps) – Dual Ethernet variant
Serial Dual RS-232 / RS-485 (Serial / Ethernet variant)
GNSS Dual-band 48-channel GNSS (GPS, GLONASS, Galileo, BeiDou)
I/O 1 × GPIO input/output
USB USB 3.2 Gen 1 Type-C® with Power Delivery and 5 Gbps LAN networking
(supports redundant power input)
IP Rating / Build Sealed aluminium housing, IP64 rated / MIL-STD-810H certified for shock, vibration & thermal resilience
Operating Temperature −40 °C to +75 °C (−30 °C to +70 °C Wi-Fi variant)
Power Input 7–36 V DC main input + USB-C redundant power (45 W), low-voltage disconnect & ignition sense
Security Stateful firewall, AAA (RADIUS), WPA2/3 Personal & Enterprise, secure firmware update, FIPS 140-2 VPN
Networking & Routing 800 Mbps firewall throughput, IPv4/IPv6 routing, NAT, QoS, DHCP Server, Policy-Based Routing, Edge Compute support (Docker)
Reliability MTBF up to 283,666 hours (~32 years @ 25 °C)
Management System AirLink Management Service (ALMS) with remote device & security management via AirLink Complete (subscription included 5 years)
Operating System AirLink® OS with Semtech Cognitive Wireless & Edge Intelligence
Certifications FCC, CE, PTCRB, GCF, E-Mark, EN50155 (Rail), Class 1 Div 2, IECEx/ATEX (Hazardous Environments), RoHS2, REACH, WEEE
Dimensions / Weight 118 × 39 × 98 mm (4.6 × 1.5 × 3.9 in) • Weight 522 g (1.15 lb Wi-Fi variant)



VEHICLE INTEGRATION FEATURES
Ignition Sense Control Configurable ignition sense with programmable time-delay shutdown for safe vehicle power-down and data integrity.
Low Voltage Disconnect Prevents vehicle battery drain by automatically powering down the router below defined voltage thresholds.
Power Protection Built-in protection against power transients including 5 VDC engine cranking and +200 VDC load dump events.
Dual Power Inputs 7–36 VDC primary input plus redundant 45 W USB-C power input for uninterrupted operation during engine start or power loss.
Operating Temperature −40°C to +75°C (−30°C to +70°C with Wi-Fi). Designed for reliable performance in extreme thermal conditions.
Shock & Vibration Certified to MIL-STD-810H and SAE J1455 for in-vehicle shock, vibration, and electrical resilience.
EMC & Vehicle Certification E-Mark (UN ECE Regulation 10.05), ISO 7637-2 compliant — suitable for professional automotive and public safety vehicle installations.
Environmental Sealing IP64-rated sealed aluminium housing with resistance to dust, water spray, humidity, and corrosion.
Mounting Options Compact form factor (118 × 39 × 98 mm) with standard RV bolt pattern and optional DIN-rail bracket for versatile installation.

4 x Wide Band 4G/5G Terminal Paddle Antenna (J-I5W)

2 x 2.4/5.0/7.2GHz Wi-Fi Terminal Paddle Antenna (J-IWR7)

1 x GPS Dash-Mounted Active Antenna (J-IGA)

XR60 Datasheet
