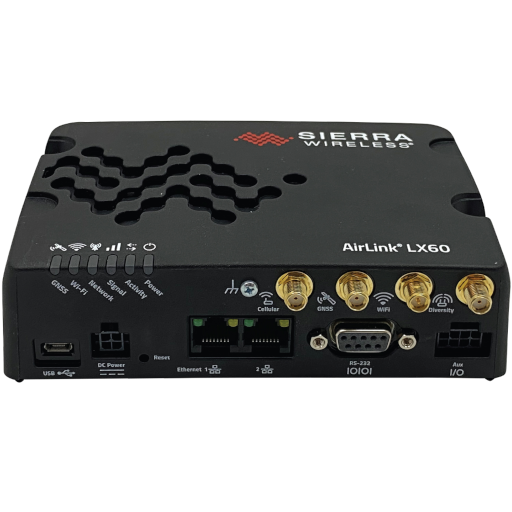

LX60 4G LTE (Cat 4) Wi-Fi Vehicle Router (Single SIM, up to 10 clients) LX60 4G LTE (Cat 4) Wi-Fi Vehicle Router (Single SIM, up to 10 clients)

LX60 4G LTE (Cat 4) Wi-Fi Vehicle Router (Single SIM, up to 10 clients)


The AirLink LX60 is designed for Commercial and Enterprise LTE network connectivity with dual Gigabit Ethernet to provide primary or backup network connectivity. LX60 comes with Wi-Fi, GNSS and rated for shock, vibration and vehicle power supplies. It offers Dual Band 802.11ac Wi-Fi and dedicated 48 Channel GNSS, meeting the demands of commercial fleets and taxis requiring connectivity.

As part of the AirLink Essential series, the LX60 is designed to meet the environmental and performance requirements of these applications, while delivering superior reliability and uninterrupted operation in fixed, indoor and protected outdoor environments.

Key Features

  • LTE Cat-4
  • 4/5 GHz 802.11ac Wi-Fi
  • 48 channel dedicated GNSS
  • 2 Gigabit Ethernet ports (LAN/WAN)
  • 5 configurable GPIOs
  • Direct vehicle bus interface (OBD-II/J1939)
  • RS232 and RS



The AirLink® LX60 is a reliable, secure LTE router designed to connect the distributed enterprise. With state-of-the-art global LTE coverage from the proven leader in LTE technology.

The LX60 is a dual Ethernet LTE Commercial Router for Retail, POS, IoT, and Commercial Fleets

  • Out-of-the box connectivity delivers same day operations
  • Ensures business continuity through simplified failover
  • Connect anywhere – without a need for wires or broadband
  • Expand new services with global device connectivity

Together with AirLink Complete, you have a one-stop enterprise networking solution to provision devices, monitor cellular data usage, and remotely maintain software versions and configurations. AirLink Complete combines best-in-class device management software through AirLink Management Service (ALMS), industry-leading technical support

Ideal Applications

Primary or backup network connectivity for:

  • Taxis and commercial fleets
  • Industrial IoT
  • Building Automation
  • Small Branch Offices
  • Retail
  • POS
Modem 4G (LTE) with fall-back to HSPA+/UMTS/EDGE/GPRS/GSM
SIM Slots 1x SIM slot
Accessories Included DC Power Supply
Ports 2x GigE, 1x USB 2.0 Micro-B Port, 1x Aux (GPIO/CAN), 1x 9-pin RS232 Serial.
Operating Temperature -30 °C to 65 °C
Antenna Connectors 2x Cellular, 1x Wi-Fi, 1x GNSS
Housing Polycarbonate
Dimensions (mm) 146 x 100 x 42
WiFi Enabled Yes
Device Industry Use Cases Taxis & Commercial Fleets, Small Branch Offices, Building Automation
Device Applications Failover Connectivity, In-Vehicle, Primary Connectivity
