IBR900 4G Wi-Fi Vehicle Router (Dual SIM, up to 128 clients) IBR900 4G Wi-Fi Vehicle Router (Dual SIM, up to 128 clients)

IBR900 4G Wi-Fi Vehicle Router (Dual SIM, up to 128 clients)

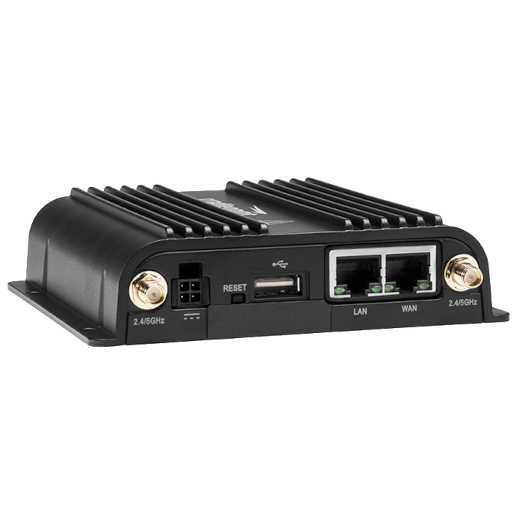

The IBR900 (successor to the popular IBR1100) is a rugged 4G / LTE-A Cat 11 vehicle router which creates a Wi-Fi hotspot supporting up to 128 Wi-Fi devices such as tablets, laptops and mobile phones. The IBR900 features dual-SIM functionality for network failover and built-in technology to maintain a persistent and reliable data connection wherever possible. Large or small deployments of IBR900 devices are easily managed by the NetCloud Manager remote management solution.

Key Features

  • Internal 4G (LTE-A Cat 11) modem with dual SIM card support and fall-back to 3G
  • Dual-band dual-concurrent 2.4/5 GHz 802.11 a/b/g/n/ac wave 2 Wi-Fi
  • Wi-Fi captive portal – ideal for bus and coach operators wishing to monetise the system or increase engagement with their customers
  • Cloud-management facility for zero-touch deployment and intelligent management
  • Designed for vehicles (rugged design, ignition sensing, E-mark certified, etc.) – more details below
  • Built-in GPS
  • Antenna connectors for external cellular (x2), Wi-Fi (x2) and GPS (x1) antennas (available separately) for greatly enhanced performance compared to devices with built-in antenna systems
  • Two Gigabit Ethernet ports to provide connectivity to other devices
  • Dual-modem capable (requires optional Extensibility Dock)


The Cradlepoint IBR900 Series Router is a ruggedized Gigabit-Class LTE networking platform that was designed for persistent connectivity across a wide range of in-vehicle and mobile applications as well as portable or fixed IoT installations.

The IBR900 is a robust, dependable Gigabit-Class LTE network platform for Blue Light Vehicles and commercial fleets.

  • Ruggedized for vibration, shock, dust, splash and humidity
  • GPS for AVL integration and location tracking to provide current and historic vehicle location
  • Dual-modem capability with COR Extensibility Dock for multi-link dependability
  • Wi-Fi-as-WAN for data-intensive tasks such as video offload

Together with the NetCloud Service for Mobile the IBR900 provides the enterprise wide connectivity that organizations need to manage their in-vehicle work while NetCloud Service for IoT provides the reliability, security, management and data orchestration for IoT applications.

Ideal Applications

Ruggedized and GPS-enabled in-vehicle network solution for:

  • Blue Light Vehicles
  • Commercial Fleets
  • Utilities
  • Buses/Trains
  • Fixed IoT installations
Modem 4G (LTE-Advanced Cat 11) with fall-back to HSPA+
SIM Slots 2x SIM slots
Accessories Included DC Power Supply
Ports 2x GigE, 1x USB 2.0 Type-A Female Port, 1x 15-pin dock port for extensibility.
Operating Temperature -30 °C to 70 °C
Antenna Connectors 2x Cellular, 2x Wi-Fi, 1x GNSS
Housing Ruggedized Metal
Dimensions (mm) 118 x 114 x 30
WiFi Enabled Yes
Device Industry Use Cases Blue Light Vehicles, Commercial Fleets, IoT
Device Applications Failover Connectivity,In-Vehicle,Primary Connectivity

IBR900 Product Brief

IBR900 Data Sheet
