R920 4G Wi-Fi Vehicle Router (Dual SIM, up to 128 clients)

R920 4G Wi-Fi Vehicle Router (Dual SIM, up to 128 clients)
R920 4G Wi-Fi Vehicle Router (Dual SIM, up to 128 clients) - Image 2

£1,235.00

The R920 (successor to the popular IBR900) is a rugged 4G / LTE vehicle router which creates a Wi-Fi hotspot supporting up to 128 Wi-Fi devices such as tablets, laptops and mobile phones. The R920 features dual-SIM functionality for network failover and built-in technology to maintain a persistent and reliable data connection wherever possible. Large or small deployments of R920 devices are easily managed by the NetCloud Manager remote management solution.

Key Features

  • Internal 4G modem with dual SIM card support
  • Dual-band dual-concurrent 2.4/5 GHz WiFi 6
  • Wi-Fi captive portal – ideal for bus and coach operators wishing to monetise the system or increase engagement with their customers
  • Cloud-management facility for zero-touch deployment and intelligent management
  • Designed for vehicles (rugged design, ignition sensing, E-mark certified, etc.) – more details below
  • Built-in GPS/GNSS
  • Bluetooth Support

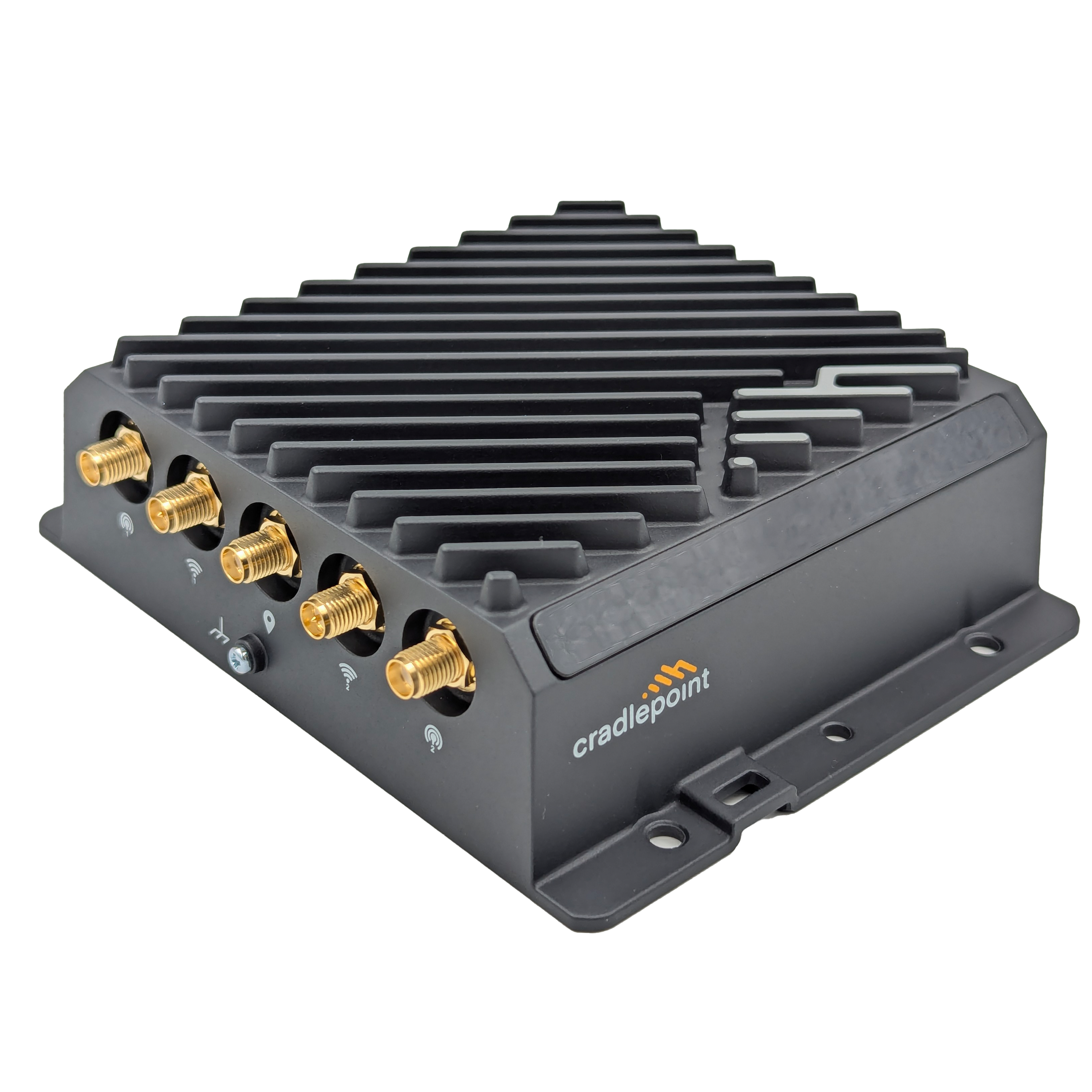

  • Antenna connectors for external cellular (x2), Wi-Fi (x2) and GPS (x1) antennas (available separately) for greatly enhanced performance compared to devices with built-in antenna systems

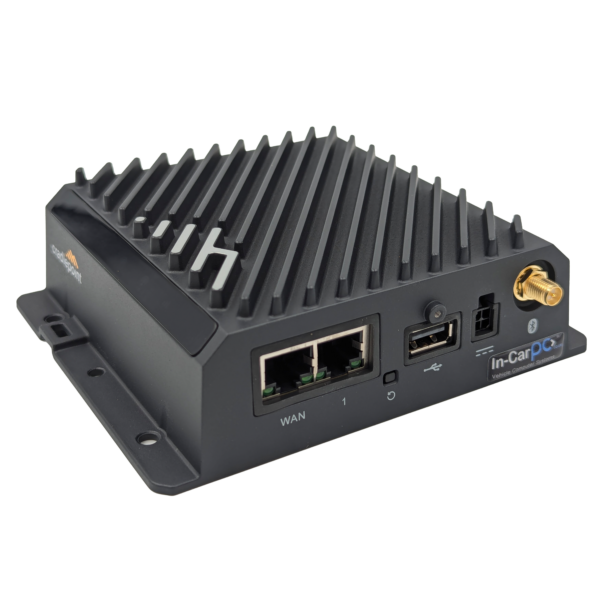

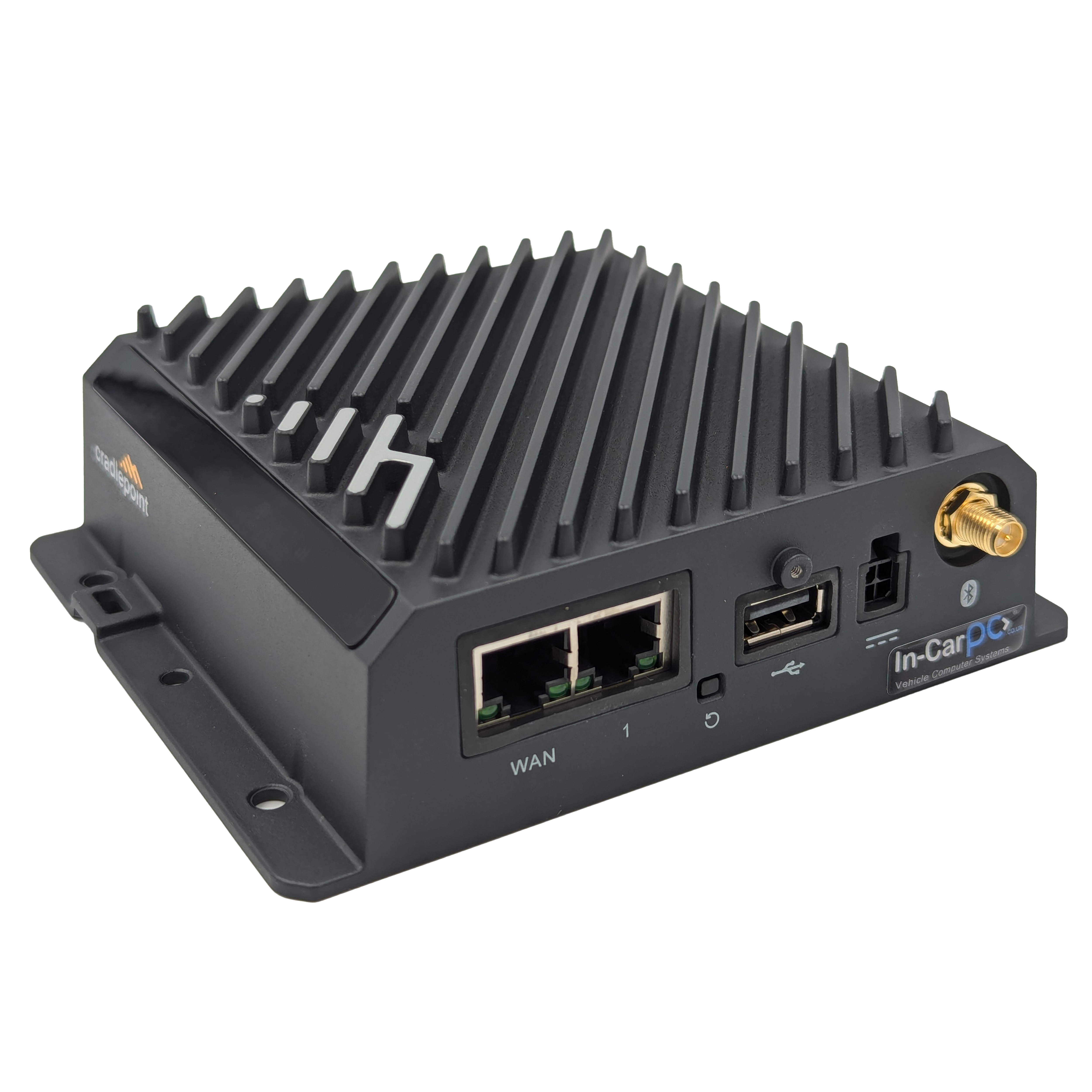

  • Two Gigabit Ethernet ports to provide connectivity to other devices
Description

The Cradlepoint R920 Series Router is a ruggedized Gigabit-Class LTE networking platform that was designed for persistent connectivity across a wide range of in-vehicle and mobile applications as well as portable or fixed IoT installations.

The R920 is a robust, dependable Gigabit-Class LTE network platform for Blue Light Vehicles and commercial fleets.

  • Ruggedized for vibration, shock, dust, splash and humidity
  • GPS for AVL integration and location tracking to provide current and historic vehicle location
  • Dual-modem capability with COR Extensibility Dock for multi-link dependability
  • Wi-Fi-as-WAN for data-intensive tasks such as video offload

Together with the NetCloud Service for Mobile the R920 provides the enterprise wide connectivity that organizations need to manage their in-vehicle work while NetCloud Service for IoT provides the reliability, security, management and data orchestration for IoT applications.

Ideal Applications

Ruggedized and GPS-enabled in-vehicle network solution for:

  • Blue Light Vehicles
  • Commercial Fleets
  • Utilities
  • Buses/Trains
  • Fixed IoT installations
Category Mobile & IoT
Cloud Management Yes
Wireless Connectivity 4G/LTE
Form Factor Ruggedized Metal
Ethernet Ports 2 GbE (LAN/WAN switchable)
USB Ports 1
Bluetooth Yes — embedded
Dual-Modem Support Yes — with RX20
Network Operator Standards PTCRB (U.S.), GCF (global)
Regions North America, Latin America, Europe, Africa & Middle East, Asia-Pacific
Throughput 940 Mbps (Firewall)
VPN Tunnel Count 20
Wi-Fi Dual-band, dual-concurrent; 802.11ax (Wi-Fi 6)
GNSS/GPS Active
PoE No
Operating Temperature -30 °C to 75 °C (-22 °F to 167 °F)
Private Cellular Network Yes — CBRS, 4G LTE
