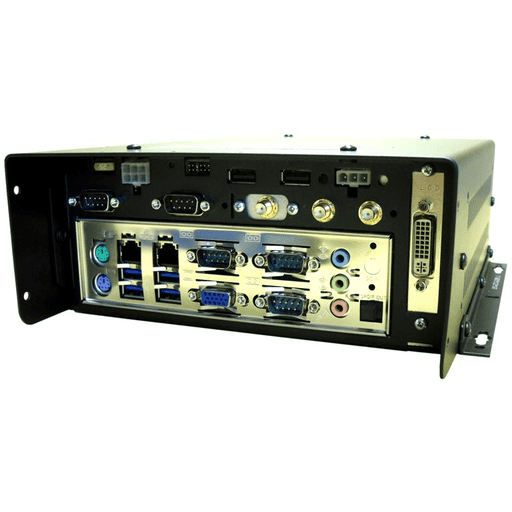

C3 Series Vehicle PC

In-CarPC’s C3 series vehicle PC features a powerful 3rd Generation Intel Core i7 mobile processor and supports up to 16 GB RAM, providing exceptional levels of performance and functionality in a compact form factor. Supporting up to 6 COM ports, offering extensive expansion capabilities, and with availability until 2020, the C3 series is ideal for long-term embedded applications requiring a high-performance and reliable hardware platform.  The PC is specifically designed for in-vehicle use, turns on and off automatically with the vehicle ignition, and does not reboot when the vehicle’s engine is cranked during starting. The C3 series has been awarded “E-mark” certification, making it fully approved for in-vehicle use, and carries a 2-year warranty as standard.

Key Info

• Intel Core i7 mobile 2.3 GHz quad core processor (3rd generation / “Ivy Bridge”), supporting Intel Turbo Boost up to 3.3 GHz
• Up to 16 GB DDR3 RAM
• Hard drives and SSDs up to 2 TB (twin & removable drives on selected chassis)
• VGA video output with optional independent DVI output
• 4 x USB 3.0 ports plus up to 6 x USB 2.0 ports
• Up to 6 x RS-232 ports
• 2 x Gigabit Ethernet ports
• Optional internal 3G/4G, GPS (DR), WLAN, Bluetooth, CAN & video capture modules
• Optional anti-vibration mounting platform
• PCI Express slot on selected chassis, with further Mini PCI Express slots
• Auto on/off with vehicle ignition, configurable shut down delays, low battery detection
• 7-36V peak input voltage range
• Regulated 12V & 5V outputs for accessories (1A each)
• E11 certified (all configurations) – fully approved for automotive use
• 2-year RTB warranty (extendable to 3 or 5 years)
• Available in a range of chassis options
