Blink Marine PKP-SI Blink Marine PKP-SI

Blink Marine PKP-SI

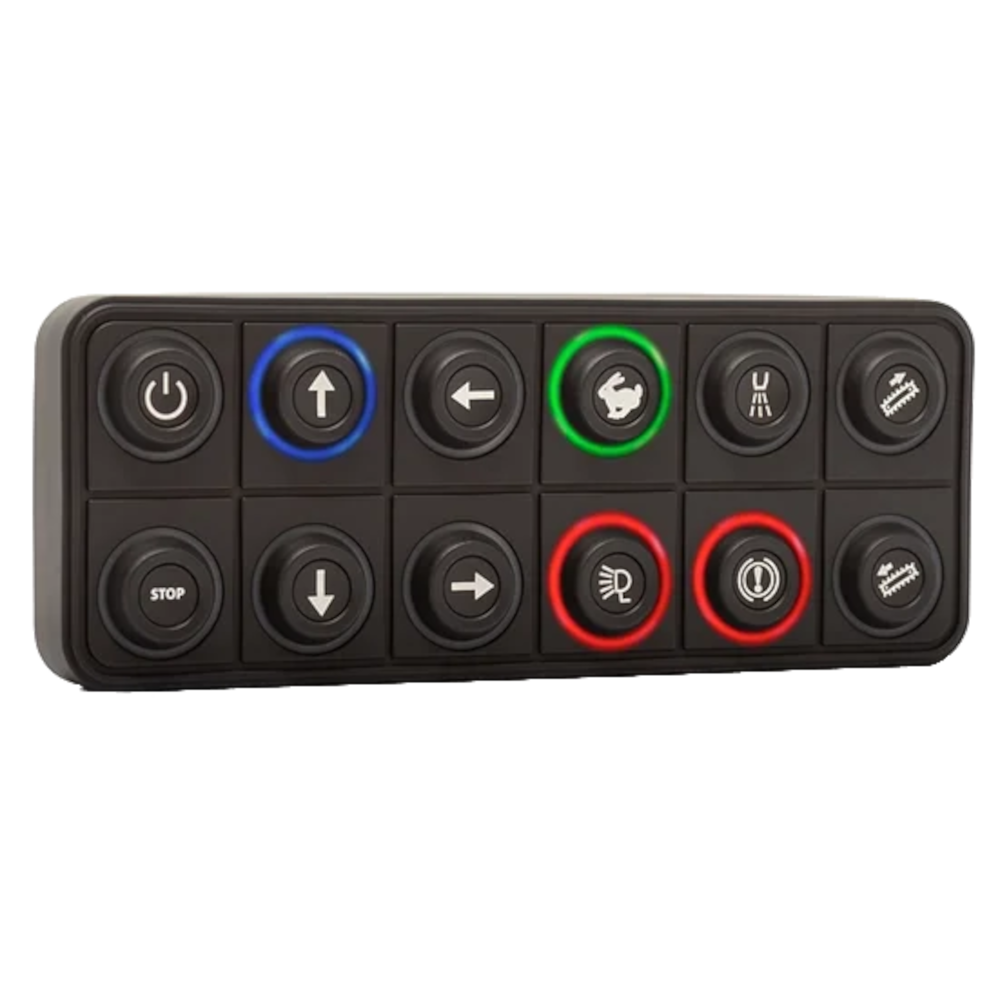

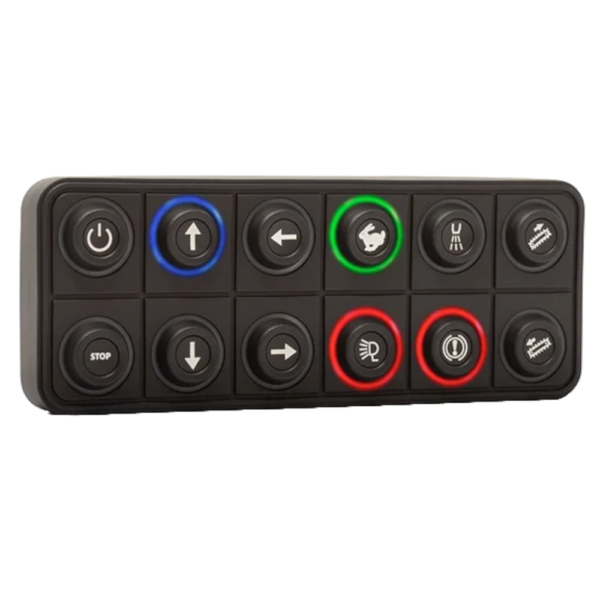

The Powerkey Pro Small Insert (PKP-SI) CAN-bus keypad from Blink Marine adds functionality to vehicle systems. The Powerkey Pro series features removable inserts, coloured LED button indicators and backlighting. With a rugged IP67 rated waterproof design. The small insert variant supports 15mm button inserts.

    Default 500kbps

    Default 0x15h

Categories: ,


The Blink Marine PKP-SI (PowerKey Pro Small Insert) is the industry leading CAN-Bus keypad. It features exclusive removable button inserts allows for a wide range of flexibility and the ability to change button usage. The PKP-SI is a compact design allowing for multiple buttons in a small area. With the possibility to connect via various CAN protocols (J1939, CANopen, RS485) the keypad can be integrated into an existing system. The use of these protocols makes the PowerKey Pro series perfect for automotive, agriculture, industrial and nautical markets.

Designed for even the harshest conditions. The PowerKey Pro can withstand the cleaning force of pressure washers and holds on IP67 rating. Making it immune to water, mud, soil, sand, oil, chemicals or anything else thrown at it. This means the is the PowerKey Pro can will still work no matter the situation.

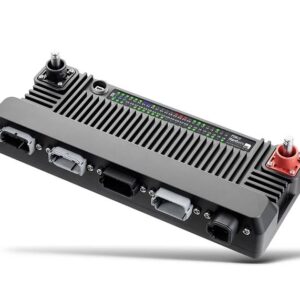

Our Blink Marine keypads can be sent out in various setups, with a baud rate and CAN-Bus ID of your choice, or with our standard setup. Our standard is designed to communicate with our i-PDM with a baud rate of 500kbps and CAN-Bus ID of 0x15h. The Blink Marine PKP-SI works with our In-CarPC i-PDM allowing for added functionality of the i-PDM and adds a fully customisable way to control the various outputs connected to the i-PDM with the touch of a button.

  • IP67/IP69K Waterproof Rating
  • UV protection
  • Vertical or Horizontal Mounting
  • Reconfigurable Icon Inserts
  • LED Backlit keys
  • Global Backlight
  • Deutsch DT04-4P Connector
  • -40°C to +70°C Operating Temperature
  • #10-32 Steel Mounting Studs
  • 100 – 250g Weight
  • High Chemical Resistance

Please select your required icons from the list below.

Icon List

PKP-SI Manual

CANopen and J1939 manuals available on request.
