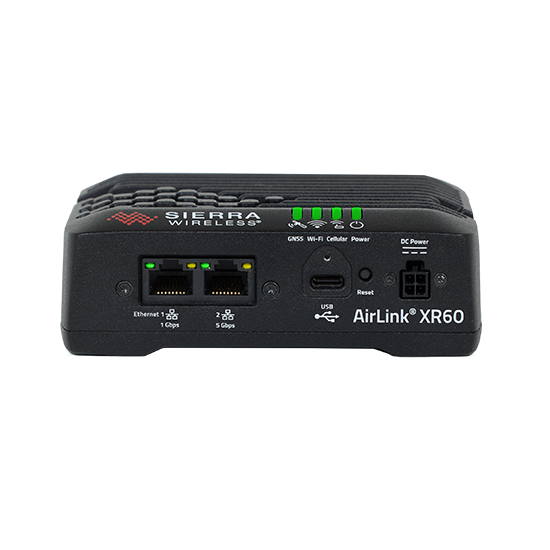

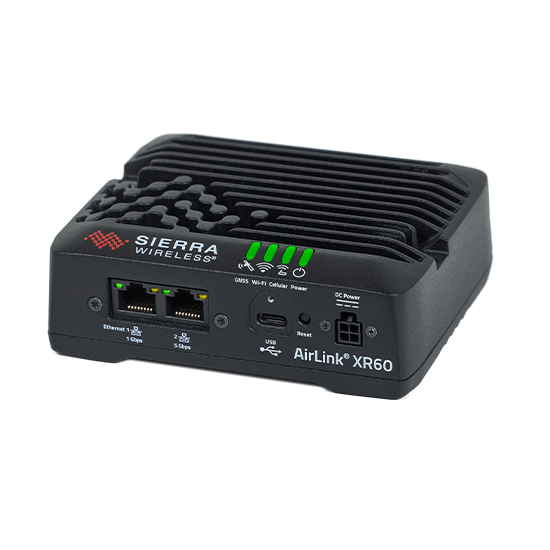

We’re now supplying the Semtech AirLink XR60 5G Router – a compact, rugged router designed specifically for vehicles and harsh industrial environments.
Built to Handle Tough Conditions
If you’ve had routers fail due to vibration, temperature extremes, or moisture, the XR60 addresses these issues directly. It has an IP64-rated aluminium case and MIL-STD-810H certification, meaning it’s been tested against the full range of challenges vehicle electronics face: constant vibration, shock, dust, humidity, and temperature swings.
Operating temperature range is -40°C to +75°C (non-Wi-Fi variant). The MTBF (Mean Time Between Failures) is approximately 283,666 hours – roughly 32 years of expected service life under standard conditions.
5G Performance
The XR60 supports 5G with LTE Cat-20 fallback, delivering download speeds up to 2.8 Gbps and uploads to 900 Mbps. Practical applications include:
- Real-time streaming of body cam and dash cam footage from emergency vehicles
- Remote access to large technical files and video consultations for field engineers
- Instant transmission of sensor data and monitoring information from utility vehicles
- Fixed Wireless Broadband for locations without traditional connectivity
The optional Wi-Fi 6 configuration supports up to 32 connected devices simultaneously across dual-band (2.4 GHz and 5 GHz) – suitable for passenger Wi-Fi services in buses and coaches, or multi-device mobile office environments.
Vehicle Integration Features
The XR60 includes specific functionality for vehicle installation:
Power Management:
- Ignition Sense with configurable delay for safe shutdown when the vehicle is turned off
- Low Voltage Disconnect to prevent battery drainage
- Dual Power Inputs (main 7-36V DC plus USB-C backup) maintain connectivity during engine start
- Protection against voltage spikes and drops from engine cranking or load dump events
Certifications:
- E-Mark certified for professional vehicle installation
- EN50155 compliant for railway applications
- ATEX/IECEx rated for hazardous environments
The design accounts for the power fluctuations, vibration, and temperature variations inherent in vehicle environments.

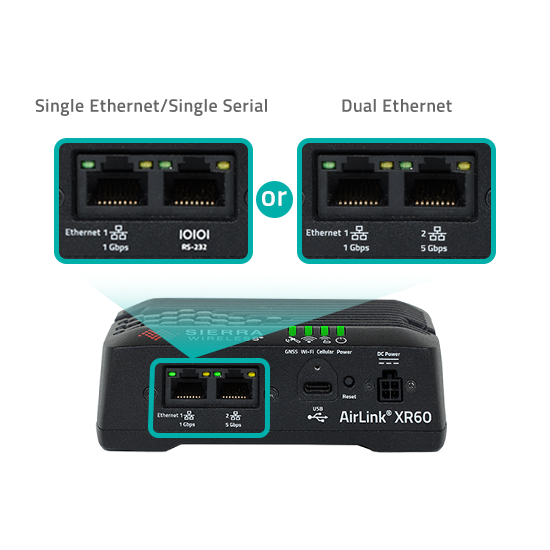

Configuration Options
The XR60 comes in a few different versions depending on what you need:
- Dual Ethernet – Two ports (1 Gbps + 5 Gbps) for wired connections
- Serial Version – One Ethernet plus RS-232/RS-485 serial ports for older equipment
- With or Without Wi-Fi – Add the Wi-Fi 6 option if you need wireless
- GPS Included – 48-channel receiver that works with GPS, GLONASS, Galileo, and BeiDou
There’s also a USB-C port that does both 5 Gbps networking and Power Delivery.
At 118 × 39 × 98 mm and 522g, it’s compact enough to fit in tight spaces but solid enough to stay secure during operation.

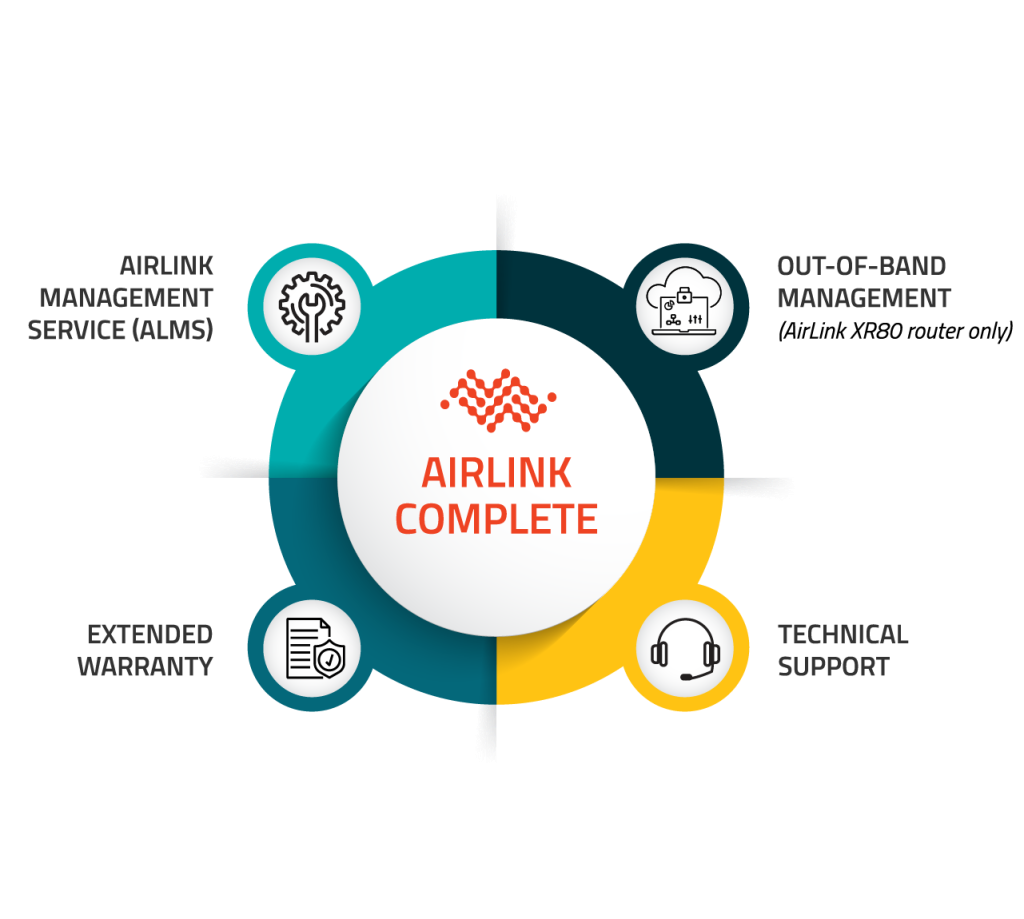

5 Years of Cloud Management Included
Every XR60 includes five years of AirLink Complete at no additional cost. Key features:
Remote Management via ALMS:
- Centralized dashboard for monitoring router health and status across your fleet
- Remote firmware updates and configuration changes
- Automated alerts for potential issues
- Detailed logging and analytics
Support and Warranty:
- Five-Year Warranty coverage
- Direct technical support from Semtech
- Secure out-of-band management
For fleet operations or multiple remote sites, remote management eliminates the need for on-site visits for routine updates and troubleshooting. The five-year inclusion means no surprise subscription fees during that period.
Applications
Emergency Services: Police, fire, and ambulance vehicles require reliable connectivity for dispatch systems, video streaming, records access, and mobile data terminals. The XR60’s vehicle certifications and power management features address these requirements.
Utilities and Field Service: Smart grid monitoring, SCADA integration via serial ports, GPS tracking for asset management, and connectivity for field engineers accessing cloud-based tools.
Public Transport: The Wi-Fi 6 option handles passenger internet service while supporting operational systems including CCTV, real-time information displays, and fleet management.
Industrial and IoT: Remote monitoring stations, smart city infrastructure, and edge computing applications in challenging environmental conditions.
Fixed Wireless Access: 5G connectivity for locations where cable or fibre infrastructure is unavailable or impractical.
Security
Security features include: Stateful Firewall, WPA2/WPA3 Encryption, 802.1X Authentication, FIPS 140-2 Compliant VPN, and cryptographically verified firmware updates. These meet requirements for transmitting sensitive operational data.
Edge Computing Support
The XR60 runs AirLink OS with Docker container support, enabling custom applications to run directly on the router. This allows for data filtering, local analytics, or pre-processing before cloud transmission, reducing bandwidth usage and latency.
Contact Information
For questions about the XR60 or to discuss your connectivity requirements, contact us:
- Phone: +44 (0)1603 485 153
- Email: [email protected]
- Address: Diamond Road, Norwich, NR6 6AW
We can assist with configuration selection, antenna recommendations, and integration support.
