XR90 5G/4G LTE (Cat 20) Wi-Fi Vehicle Router (Dual Sim, up to 192 clients) XR90 5G/4G LTE (Cat 20) Wi-Fi Vehicle Router (Dual Sim, up to 192 clients)

XR90 5G/4G LTE (Cat 20) Wi-Fi Vehicle Router (Dual Sim, up to 192 clients)

£1,899.00

The supercharged AirLink XR90 is purpose-built for public safety and transit with available dual-5G cellular radios and dual independent 4×4 MIMO Wi-Fi 6 antennas. It is the highest performing, most flexible router in the Sierra portfolio. It supports complete device-to-cloud security, reduces your total cost of ownership with ALMS Out-of-Band management, and with the cartridged-based design, enables long-term expandability and upgradability.

The AirLink XR90 is a fully-supported, out-of-the box solution complete with integrated device management, advanced mobility reporting and 24/7 technical support. AirLink Connection Manager delivers complete VPN security and our AirLink Professional Services maximizes your system performance and customer satisfaction.

Key Features

  • 5G (non-mmWave) >2 Gbps with 4G/3G fallback
    • Optional expansion cartridges (cartridge includes cellular radio module and Ethernet port)
    • Wi-Fi: XR90—Dual independent 4×4 MIMO Wi-Fi 6
    • Ethernet (LAN/WAN):
    · Main router ports: 1×5 Gbps, 2×1 Gbps
    · XP cartridge(s) port: 1×1 Gbps
    • Direct vehicle bus (CAN bus) interface (OBD-II (J1979)/J1939))
    • 5 configurable GPIOs
    • USB-C connector: USB 3.1 Gen 1 (SuperSpeed 5 Gbps)
    • Assisted GNSS with inertial navigation and dead reckoning
    · Precision mobile events reporting (via NMEA/TAIP streaming) at 1 second intervals allows for detailed network and connectivity analysis.

Our recommendation for antennas is to use the 4×4 MIMO Wi-Fi and 4×4 MIMO cellular, however the XR90 will work with 2×2 MIMO Wi-Fi and 2×2 MIMO cellular.

Categories: ,

Description

The supercharged AirLink XR90 is purpose-built for vehicle applications such as Transit and Public Safety. With dual 5G cellular radios and dual independent 4×4 Wi-Fi 6 radio, it is the highest performing, most flexible router in the Sierra portfolio.

XR90 – 5G High-Performance Multi-Network Vehicle Router for Transit, Rail and First Responder Fleets

  • The industry’s highest performing 5G router, purpose-built for vehicles
  • Future-proof, cartridge-based design for additional functions and features
  • 5 Ethernet ports and dual 4X4 MIMO Wi-Fi 6
  • Remote device management and mobility-focused reporting through AirLink Premium

The AirLink XR90 is a fully-supported, out-of-the box solution complete with integrated device management and 24/7 technical support. AirLink Connection Manager delivers complete VPN security and our AirLink Professional Services maximizes your system performance and customer satisfaction.

Ideal Applications
Mobile mission critical applications in public safety, transit and field services. Delivers secure always-on Vehicle Area Networks (VANS) for:

  • Buses/Trains
  • Blue Light Vehicles
  • Autonomous Vehicles
  • Utilities
  • Private Networking
Modem 5G NR FR1 / LTE Advanced Pro
SIM Slots 2x SIM slots
GPS Yes
Accessories Included DC Power Supply and LPWA Antenna Included
Ports Single Modem: 1x 5.0 GigE, 3x GigE, 1x USB 3.2 Type-C, 1x Aux (GPIO/CAN), Dual RS232 Serial on RJ-45. Dual Modem: 1x 5.0 GigE, 4x GigE, 1x USB 3.2 Type-C, 1x Aux (GPIO/CAN), Dual RS232 Serial on RJ-45.
Operating Temperature -30 °C to 70 °C

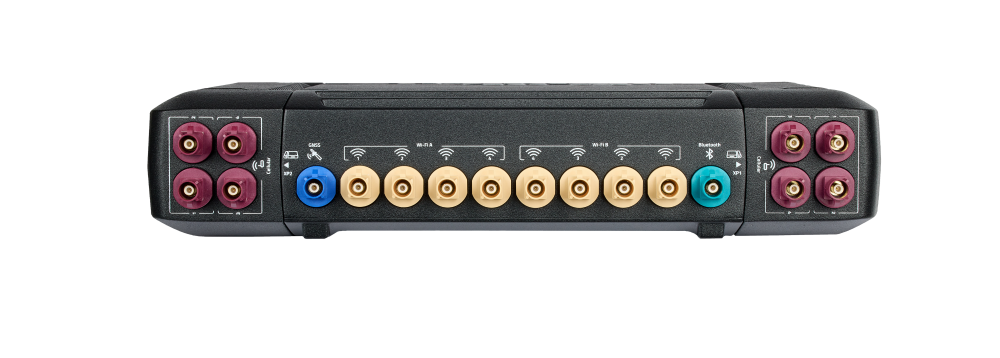

Antenna Connectors Single Modem: 4x Cellular, Dual 4x Wi-Fi, 1x GNSS, 1x Bluetooth, 1x LPWA. Dual Modem: 8x Cellular, Dual 4x Wi-Fi, 1x GNSS, 1x Bluetooth, 1x LPWA
Housing Die Cast Aluminium
Dimensions (mm) 220 x 170 x 53
WiFi Enabled Yes
Device Industry Use Cases Branch Offices,Construction,Transportation
Device Applications Failover Connectivity,In-Vehicle,Primary Connectivity

XR90 TechSpec

XR90 Info Sheet
