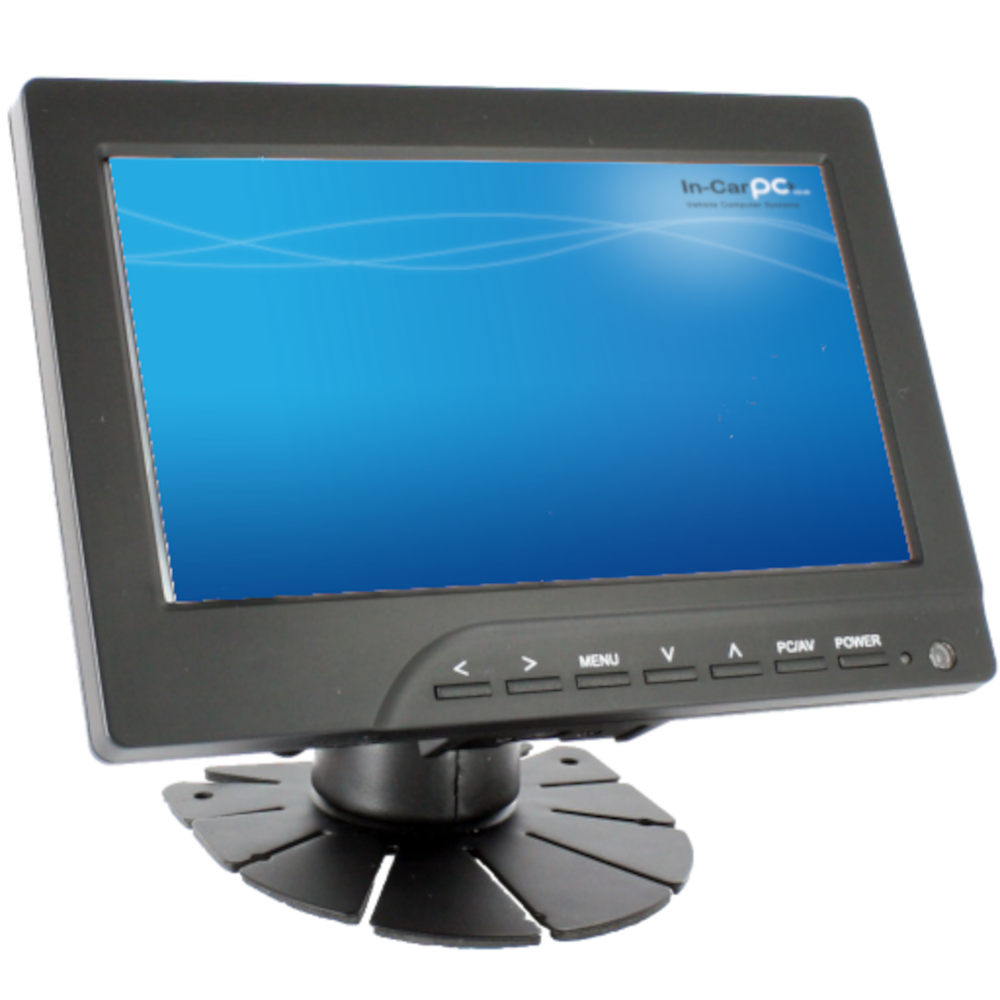

LCD700V – 7″ Value-line Touch Sensitive Display LCD700V - 7" Value-line Touch Sensitive Display

LCD700V – 7″ Value-line Touch Sensitive Display


The LCD700V 7″ LED-backlit touchscreen is suitable for any PC with a VGA or HDMI video output, and can also display footage from a single analogue camera via an RCA input.  A basic dashboard mounting bracket is included, but the LCD700V’s T-slot and VESA mounting holes allow it to be used with a wide range of other mounting solutions – such as RAM Mount brackets for installation at various locations within the vehicle cab.

Please note the following differences in particular compared to the LCD700 and LCD700S displays:

  • The LCD700V does not use an all-in-one cable system.  Instead, VGA, power and optional HDMI cables must be connected separately to the rear of the display (cables exit from the side).  The USB interface for the touchscreen is implemented via unused pins on the VGA connector, and the supplied VGA cable includes a USB plug for connection to the host PC.
Screen size

7″ diagonal

Backlight Technology


Supported Resolutions

640 x 480 – 1920 x 1440

Physical Resolution

800 x 480

Aspect Ratio

16:9 (widescreen)


400 cd/m²

Contrast Ratio


Video Inputs

VGA video input

HDMI video input

1 x composite RCA video input

Touchscreen Interface

USB touchscreen interface (implemented via unused pins on VGA connector, cable supplied terminating in VGA Male & USB Type A Male)

Touchscreen Technology

Resistive (can be operated with gloves)

Power input

12V (DC input socket on rear of display)

Max power consumption



Built-in speaker (3.5mm socket on rear of display)

Note – the built-in speaker is relatively low powered, and is not suitable for environments with significant background noise.  For these environments we recommend an amplified communications speaker.


182 x 127 x 30 mm

Operating Temperature

-20 to 60 °C


VESA 75 mounting holes

T-slot mounting channel

Supplied with

AC power adapter

Touchscreen stylus (holder integrated into rear of display)

IR remote

1.5m combined VGA & USB cable

Cigarette lighter power adapter

Mounting bracket
