£333.25

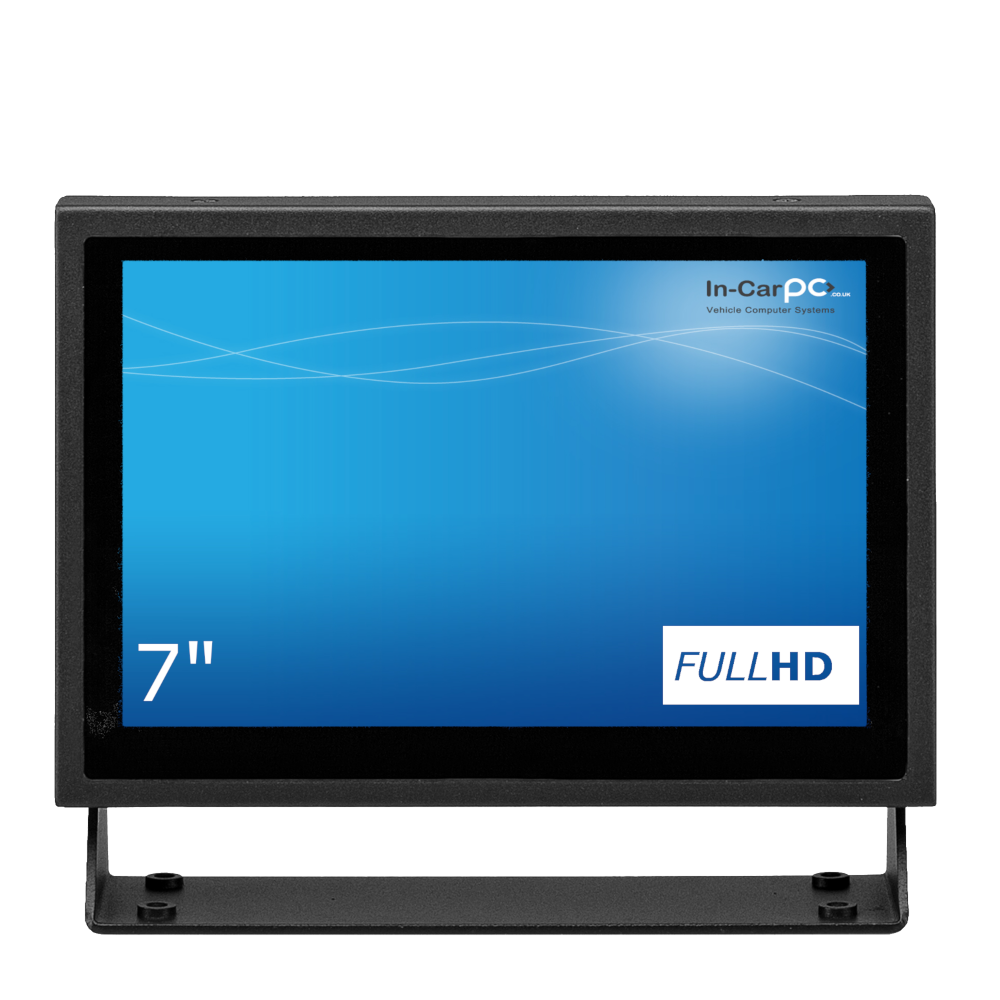

The LCD700M features a Full-HD, 16:10 aspect ratio touchscreen and supports 10-point multitouch.
- High resolution multi-touch panel.
- Stand included, VESA 75mm mountable
- HDMI and VGA connections
- Full metal construction
Description

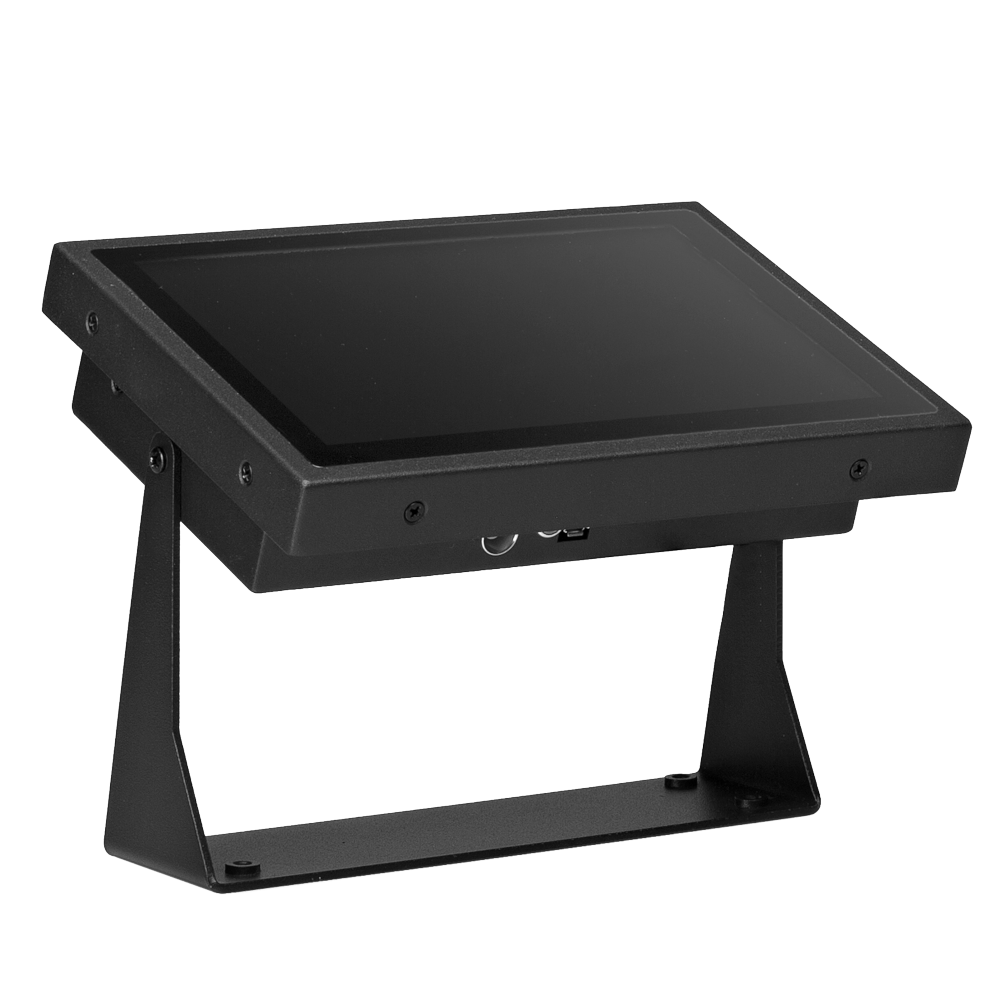

The LCD700M features a 7″ Full-HD LED-backlit touchscreen is suitable for any PC with a HDMI or VGA video output. The and can also display footage from a single analogue camera via RCA and BNC input. A basic stand is included, but the LCD700M’s VESA 75mm mounting holes allow it to be used with a wide range of other mounting solutions – such as RAM Mount brackets for installation at various locations within the vehicle cab.
The high resolution IPS panel delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The LCD700M has a capacitive multi-touch screen that can process 10 points of contact simultaneously. This provides extremely accurate operation and supports gestures like swiping, zooming and pinching.
Screen specs
| Screen Size | 7.2 inch Diagonal |
| Aspect Ratio | 16:10 (16:9, 4:3 adjustable) |
| Native Resolution | 1280 x 800 |
| Min Supported Res. | 640 x 480 |
| Max Supported Res. | 1920 x 1200 |
| Pixels Per Inch | 217 PPI |
| Viewing Angle | 178° horizontal, 178° vertical |
| Brightness | 350 cd/m2 |
| Contrast | 800:1 |
| Touch Technology | Capacitive, 10-point multitouch (PCAP) |
| Touch Control | Stylus, hand, glove |
Connectivity types
| HDMI | 1x |
| VGA | 1x |
| BNC (CVBS) | 1x |
| RCA video | 1x |
| AUX input | 1x |
| AUX output | 1x |
| USB | Only for touchscreen functionality |
Size & Weight
| Colour | Black |
| Weight | 700g (900g with stand) |
| Width | 181mm |
| Height | 123mm |
| Thickness | 42mm |
| Display dimensions | 154 x 98mm |
Features & Functions
| Audio | Integrated speakers |
| Key-lock | Control buttons can be blocked |
| Auto-on | When current and signal received |
| Dimmable | Adjustable backlight brightness |
| Mounting | Adjustable and detachable stand |
| VESA mountable (75mm) |
Power & Environmental
| Input voltage | DC 9-28V |
| Power supply | Input: 110-240V˜50/60Hz |
| Output: 12V-2A | |
| Consumption | 5.4 Watts |
| Operation temp | -20°C to +60°C |
| Storage temp | -20°C to +70°C |
Package Contents
| Included | Touchscreen, USB cable, Remote control, Mains adaptor, Stand. |
