LCD700 – 7″ Touch Sensitive Display LCD700 - 7" Touch Sensitive Display

LCD700 – 7″ Touch Sensitive Display

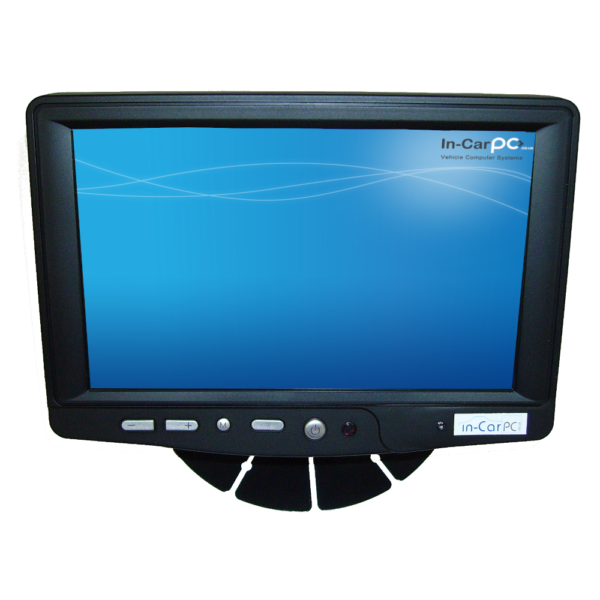

The LCD700 7″ LED-backlit touchscreen is suitable for any PC with a VGA video output, and can also display footage from up to 3 analogue cameras via RCA inputs.  A basic dashboard mounting bracket is included, but the LCD700’s T-slot and VESA mounting holes allow it to be used with a wide range of other mounting solutions – such as RAM Mount brackets for installation at various locations within the vehicle cab.

The touchscreen is supplied with a 2.5m all-in-one cable, which supplies all necessary feeds to the touchscreen via a single cable.  The cable breaks out into industry-standard connectors (VGA, RCA, DC plug, etc.) approximately half-way along its length, and has a male multi-pin connector at the display end.  The display itself has a short cable protruding from the back with a corresponding female multi-pin connector for connection to the all-in-one cable.

The LCD700 switches on automatically when a signal is detected on the VGA input, and automatically switches to its third RCA camera input when a signal is detected on this line (e.g. from a reversing camera which is powered only when reverse gear is selected).

Screen size

7″ diagonal

Backlight Technology


Supported Resolutions

640 x 480 – 1920 x 1200

Physical Resolution

800 x 480

Aspect Ratio

16:9 (widescreen)


400 cd/m²

Contrast Ratio


Video Inputs

VGA video input

3 x composite RCA video inputs, one with auto switching for rear-view camera

Touchscreen Interface

USB touchscreen interface

Software and drivers are preinstalled on all our PCs (and also available separately)

Touchscreen Technology

Resistive (can be operated with gloves)

Power input

12V (DC input socket on end of all-in-one cable)

Max power consumption


Auto Power On

Display automatically powers on when a VGA input signal is detected, and powers off when the signal is lost.

Auto Camera Switching

Display automatically switches to 3rd RCA video input whenever a signal is detected on this line.


Built-in speaker (2 x RCA audio inputs on all-in-one cable)

Note – the built-in speaker is relatively low powered, and is not suitable for environments with significant background noise.  For these environments we recommend an amplified communications speaker.

Visible area

154 x 93 mm


178 x 130 x 27 mm

Operating Temperature

0 to 70 °C


VESA 75 mounting holes

T-slot mounting channel

Supplied with

AC power adapter

Touchscreen stylus (holder integrated into rear of display)

IR remote

2.5m all-in-one cable

Cigarette lighter power adapter

Mounting bracket

Headrest shroud
