LCD1200I – 12″ HD Touch Sensitive Display

£370.35

The LCD1200I features a Full-HD, 16:9 aspect ratio touchscreen and supports 10-point multitouch.

  • High resolution multi-touch panel.
  • Stand included, VESA 75mm mountable
  • HDMI and VGA connections

Description

The LCD1200I features a 12″ Full-HD LED-backlit touchscreen is suitable for any PC with a HDMI or VGA video output. The and can also display footage from a single analogue camera via RCA and BNC input.  A basic stand is included, but the LCD1200I’s VESA 75mm mounting holes allow it to be used with a wide range of other mounting solutions – such as RAM Mount brackets for installation at various locations within the vehicle cab.

The high resolution IPS panel delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The LCD1200I has a capacitive multi-touch screen that can process 10 points of contact simultaneously. This provides extremely accurate operation and supports gestures like swiping, zooming and pinching.

Screen specs

Screen Size 11.0 inch Diagonal (279mm)
Aspect Ratio 16:9 (4:3 adjustable)
Native Resolution 1920 x 1080
Min Supported Res. 640 x 480
Max Supported Res. 1920 x 1080
Pixels Per Inch 190 PPI
Viewing Angle 178° horizontal, 178° vertical
Brightness 500 cd/m2
Contrast 1000:1
Touch Technology Capacitive, 10-point multitouch (PCAP)
Touch Control Stylus, hand, glove

Connectivity types

HDMI 1x
VGA 1x
BNC (CVBS) 1x
RCA video 1x
AUX output 1x
USB Only for touchscreen functionality

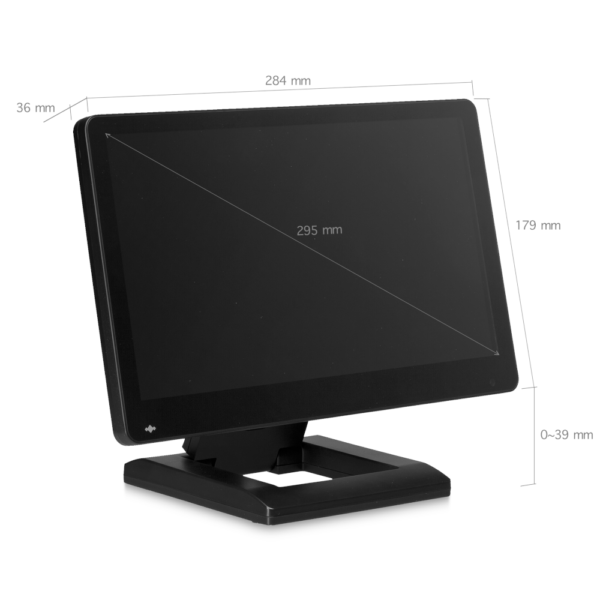

Size & Weight

Colour Black
Weight 700g (1100g with stand)
Width 284mm
Height 179mm
Thickness 36mm
Display dimensions 256 x 144mm

Features & Functions

Audio Integrated speakers
Key-lock Control buttons can be blocked
Auto-on When current and signal received
Dimmable Adjustable backlight brightness

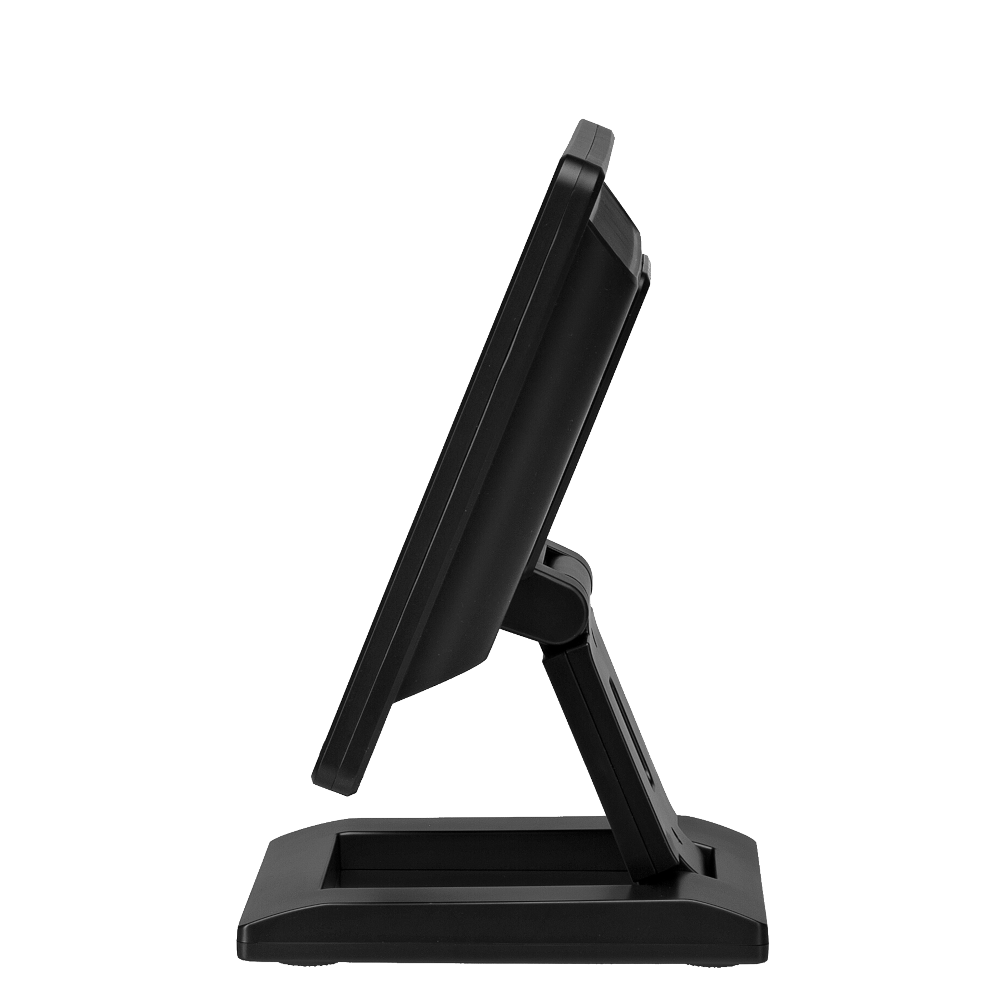

Mounting Adjustable and detachable stand
VESA mountable (75mm)

Power & Environmental

Input voltage DC 9-28V
Power supply Input: 110-240V˜50/60Hz
Output: 12V-2A
Consumption 9.6 Watts
Operation temp -20°C to +60°C
Storage temp -20°C to +70°C

Package Contents

Included Touchscreen, USB cable, Remote control, Mains adaptor, Stand.
