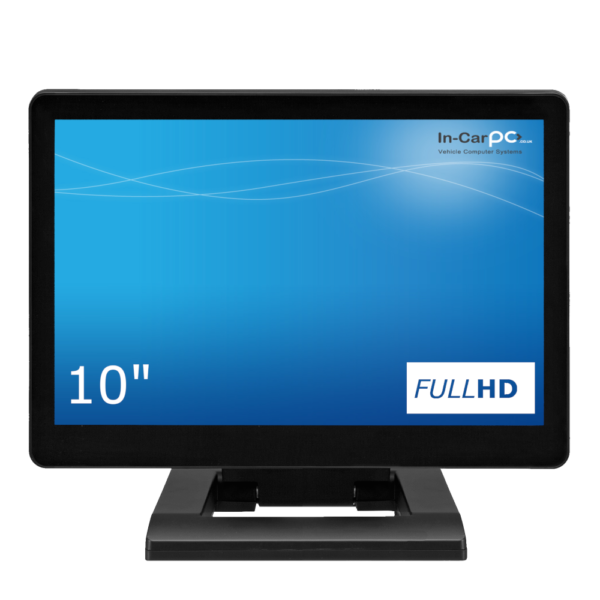

LCD1000I – 10″ HD Touch Sensitive Display LCD1000I - 10" HD Touch Sensitive Display

LCD1000I – 10″ HD Touch Sensitive Display


The LCD1000I features a Full-HD, 16:10 aspect ratio touchscreen and supports 10-point multitouch.

  • High resolution multi-touch panel.
  • Stand included, VESA 75mm mountable
  • HDMI and VGA connections


The LCD1000I features a 10″ Full-HD LED-backlit touchscreen is suitable for any PC with a HDMI or VGA video output. The and can also display footage from a single analogue camera via RCA and BNC input.  A basic stand is included, but the LCD1000I’s VESA 75mm mounting holes allow it to be used with a wide range of other mounting solutions – such as RAM Mount brackets for installation at various locations within the vehicle cab.

The high resolution IPS panel delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The LCD1000I has a capacitive multi-touch screen that can process 10 points of contact simultaneously. This provides extremely accurate operation and supports gestures like swiping, zooming and pinching.

Screen specs

Screen Size 10.0 inch Diagonal (254mm)
Aspect Ratio 16:10 (16:9, 4:3 adjustable)
Native Resolution 1920 x 1200
Min Supported Res. 640 x 480
Max Supported Res. 1920 x 1200
Pixels Per Inch 224 PPI
Viewing Angle 178° horizontal, 178° vertical
Brightness 300 cd/m2
Contrast 900:1
Touch Technology Capacitive, 10-point multitouch (PCAP)
Touch Control Stylus, hand, glove

Connectivity types

VGA 1x
RCA video 1x
AUX input 1x
AUX output 1x
USB Only for touchscreen functionality

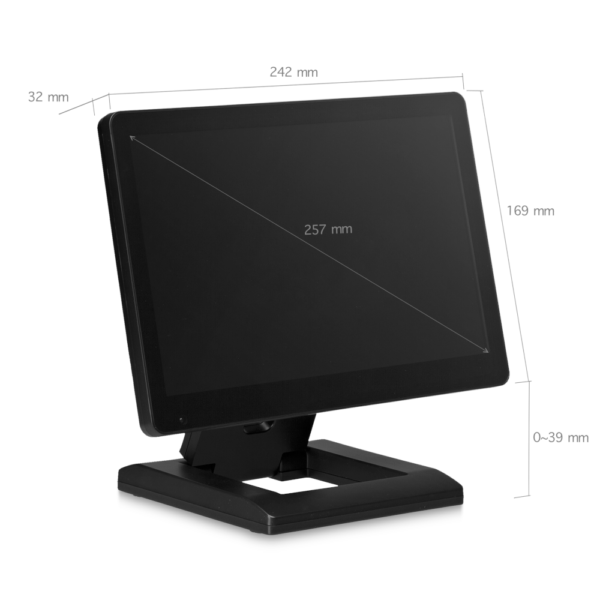

Size & Weight

Colour Black
Weight 700g (1100g with stand)
Width 242mm
Height 169mm
Thickness 32mm
Display dimensions 216 x 135mm

Features & Functions

Audio Integrated speakers
Key-lock Control buttons can be blocked
Auto-on When current and signal received
Dimmable Adjustable backlight brightness
Mounting Adjustable and detachable stand
VESA mountable (75mm)

Power & Environmental

Input voltage DC 9-28V
Power supply Input: 110-240V˜50/60Hz
Output: 12V-2A
Consumption 5.5 Watts
Operation temp -20°C to +60°C
Storage temp -20°C to +70°C

Package Contents

Included Touchscreen, USB cable, Remote control, Mains adaptor, Stand.
