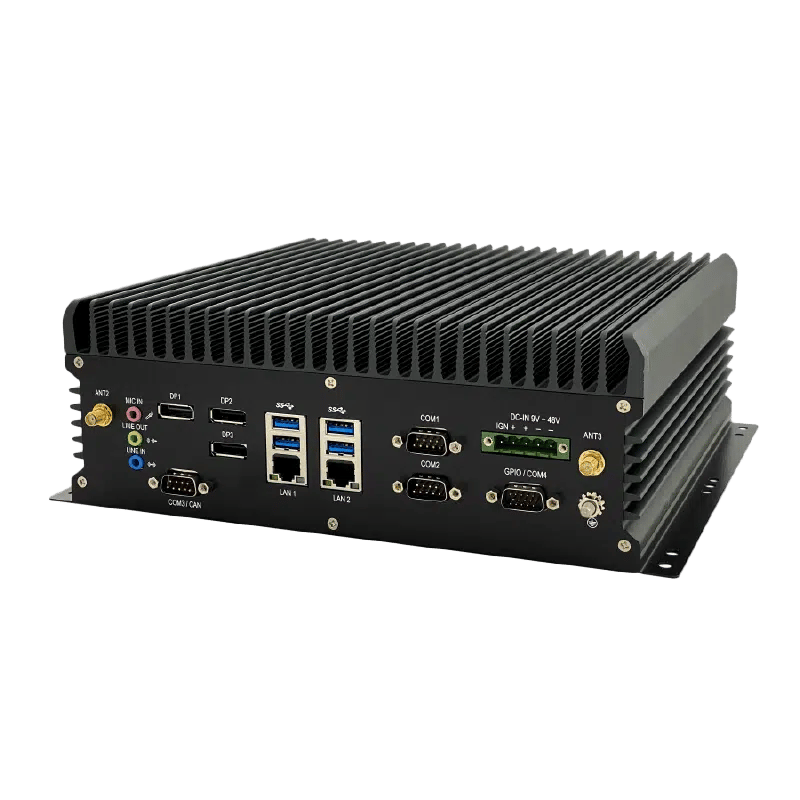

The new CQ80 series takes over from the CQ70 line-up as some of the most powerful PC’s in our range. Configurations range up to a 10-core Intel Core i9-10900TE CPU with an NVIDIA Quadro RTX 3000 GPU featuring 1920 CUDA cores and 240 Tensor cores, this PC is designed to handle the growing demands of AI GPU computing. All wrapped up in a discrete, rugged fanless form factor.
Description
The new CQ80 series takes over from the CQ70 line-up as some of the most powerful PC’s in our range. Configurations range up to a 10-core Intel Core i9-10900TE CPU with an NVIDIA Quadro RTX 3000 GPU featuring 1920 CUDA cores and 240 Tensor cores, this PC is designed to handle the growing demands of AI GPU computing. All wrapped up in a discrete, rugged fanless form factor.
As with all our PCs, numerous built-in options are available, including cellular, GPS, Wi-Fi, video capture, CAN-bus and 8 channel PoE as standard. The fanless nature of the CQ80 series makes it suitable for extremely dusty environments and the device’s ruggedness is demonstrated by multiple MIL-STD-810G tests. The CQ80 series is E-mark certified making it fully approved for in-vehicle use and also certified CE, FCC Class A and EN50155 compliant offering a wide range of operational use cases. All our CQ range includes a 2-year warranty as standard, which is extendable to 3 or 5 years.
• Up to an 10th Gen Intel i9-10900TE processor (10 Cores, 20 threads, up to 4.5GHz)
• Up to a NVIDIA Quadro RTX 3000 GPU (1920 CUDA cores, 240 Tensor cores)
• Up to 64 GB DDR4 RAM
• M.2 slot for Ultra-fast NVMe and MSATA storage
• Configurable Dual Removable 2.5″ SSDs with RAID support
• 3 x DisplayPort 1.2 powered by the Intel UHD 630 Graphics
• (with GPU) 2 x HDMI powered by the NVIDIA RTX 3000
• Optional internal 4G, GPS (DR), WLAN, Bluetooth, CAN & video capture modules
• Supports up to 2 internal cellular (4G / LTE) modems, with 2 easily accessible SIM card slots
• 8 x Digital Inputs and 4 x Digital Outputs (Supporting Relay Switching)
• Optional Internal Backup Battery (UPS) providing approx. 10 minutes of operation with no external power
• Up to 4 x USB 3.2 5Gbps Ports
• Up to 4 x RS-232 Ports
• 10 x RJ45 GbE LAN Ports – with optional Power over Ethernet (PoE) on 8 ports (Max 120W)
• Auto on/off with vehicle ignition, configurable shut down delays via software, low battery detection
• 9-48V peak input voltage range
• E11 certified – fully approved for automotive use
• Up to -40°C to +70°C (with 0.6 m/S airflow) operating temperature range at base specification
• MIL-STD-810G tested for shock & vibration
• 2-year RTB warranty (extendable to 3 or 5 years)
• Long-term availability
Dimensions
Width: 290 mm
Depth: 250 mm
Height: 95 mm
Weight: 5.3 Kg (base specification)
