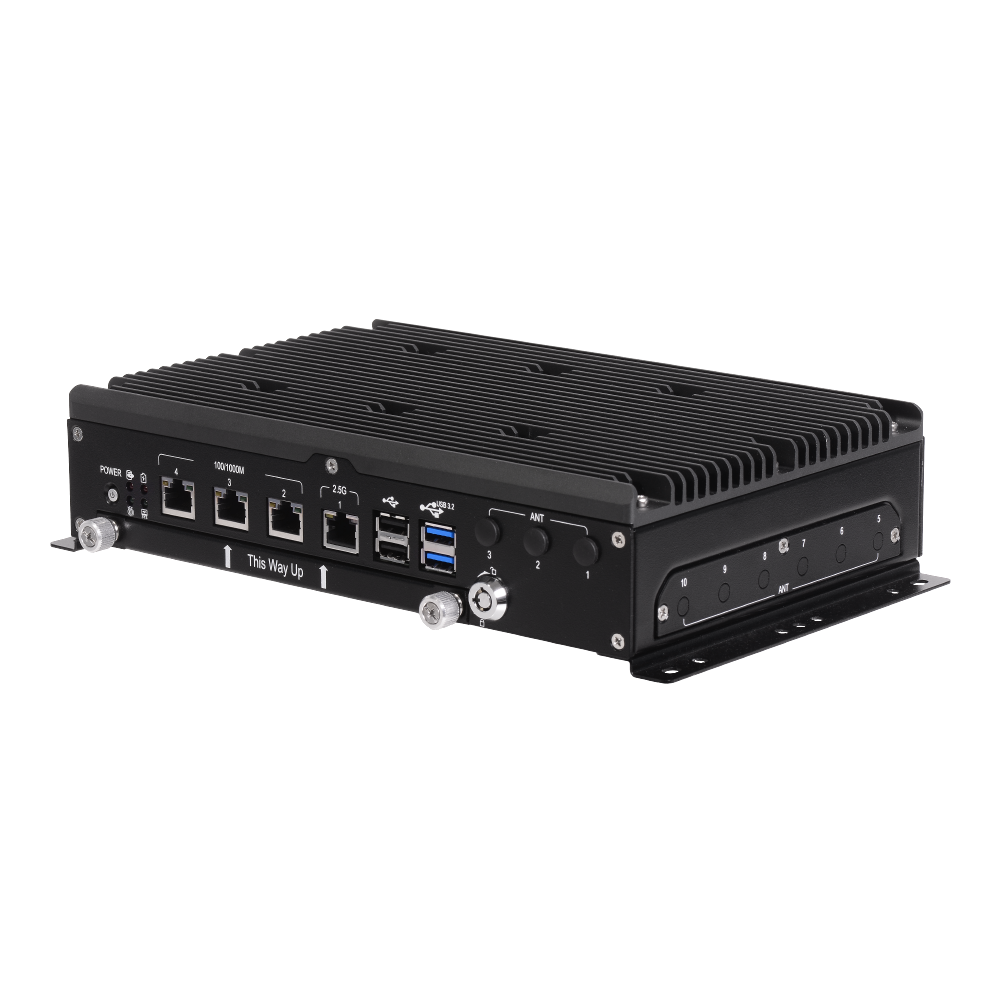

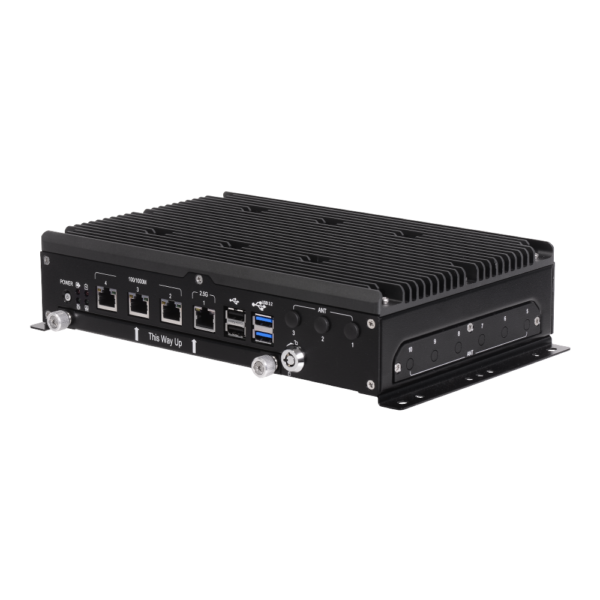

CQ50S Fanless Vehicle PC

CQ50S Fanless Vehicle PC

In-CarPC’s CQ50S fanless in-vehicle PC offers a high level of performance in a compact fanless system, supporting 11h generation Intel® Core™ i5 and i7 processors with up to 64 GB RAM.  The CQ50S’s compact chassis supports NVMe and dual removable 2.5″ drives.  Numerous built-in options are available, including up to 5G and 4G/LTE modems, GPS, Wi-Fi and CAN-bus.  The CQ50S can drive 4 displays independently via its DVI, DisplayPort and dual HDMI outputs.

Description

The CQ50S is the new addition to In-CarPC’s CQ50 range of fanless in-vehicle PCs. It offers a higher level of performance than the existing of the range, while still featuring the compact and fanless design. Powered by 11th generation Intel® Core™ processors with up to 64 GB RAM this is a large upgrade on the existing CQ50 range. Along with the increased processor performance the CQ50S also features NVMe support for increased operating speeds. It is still capable of supporting dual removable 2.5″ drives.

As with all our PCs, numerous built-in options are available. Including cellular, GPS, Wi-Fi, video capture and CAN-bus. The fanless nature of the CQ50S makes it suitable for extremely dusty environments and the device’s ruggedness is demonstrated by multiple MIL-STD-810G tests. The CQ50S is E-mark certified making it fully approved for in-vehicle use and also certified CE, FCC Class A and EN50155 compliant offering a wide range of operational use cases. The CQ50S comes with a 2-year warranty as standard, which is extendable to 3 or 5 years.



  • Intel® Core™ i5-1145G7E 1.5GHz up to 4.1GHz, Intel® Core™ i7-1185G7E 1.8GHz up to 4.4GHz
  • Up to 64 GB DDR4 RAM
  • Single M.2 slot for ultra-fast NVMe
  • Dual removable 2.5″ SSDs
  • Supports up 4 displays with dual HDMI, DisplayPort and DVI-D outputs powered by the Intel Graphics
  • Optional internal 5G/ 4G LTE, GPS (DR), WLAN, Bluetooth, CAN & video capture modules
  • Dual SIM card slots for built-in cellular modem
  • 6 x digital inputs and 4 x digital outputs
  • Optional internal backup battery (UPS) providing approx. 10 minutes of operation with no external power
  • 2 x USB 3.2 Gen 2 and 2 x USB 2.0 ports
  • Up to 4 serial ports supporting RS-232/422/485
  • 1 x 2.5 GbE RJ-45 LAN port
  • 3 x GbE RJ-45 LAN ports
  • Auto on/off with vehicle ignition, configurable shut down delays via software, low battery detection
  • 9-36V peak input voltage range
  • Regulated 12V switched output for powering accessories (2A)
  • E11 certified – fully approved for automotive use
  • -40°C to +70°C (with 0.6 m/S airflow) operating temperature range at base specification
  • MIL-STD-810G tests for shock & vibration
  • 2-year RTB warranty (extendable to 3 or 5 years)
  • Long-term availability

Dimensions

Width: 250 mm
Depth: 165 mm
Height: 55 mm

Weight: 2.5 Kg (base specification)

CQ50S Datasheet
