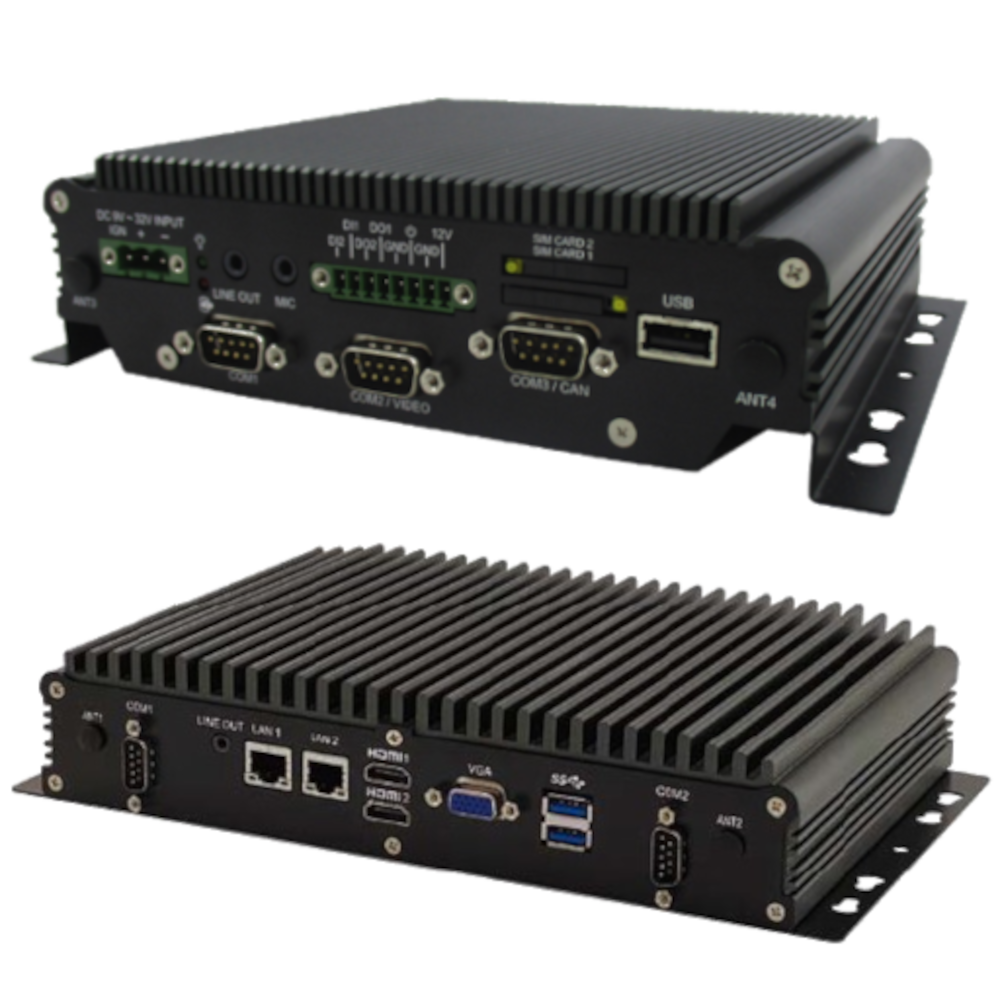

CQ40N Fanless Vehicle PC

CQ40N Fanless Vehicle PC
CQ40N Fanless Vehicle PC - Image 2
CQ40N Fanless Vehicle PC - Image 3

In-CarPC’s CQ40N series will take over from our highly popular CQ40 series as our main fleet services solution, with our signature compact and fanless design allowing for the system to be placed discreetly in the vehicle. Featuring a range of 6th generation Intel processor options from Intel Celeron 3955U, up to the high-performance Intel Core i7-6600U making the CQ40N series a big upgrade on its predecessor.

Description

In-CarPC’s CQ40N series will take over from our highly popular CQ40 series as our main fleet services solution,
with our signature compact and fanless design allowing for the system to be placed discreetly in the vehicle.
Featuring a range of 6th generation Intel processor options from Intel Celeron 3955U, up to the high-performance
Intel Core i7-6600U making the CQ40N series a big upgrade on its predecessor.

As with all our PCs, numerous built-in options are available, including cellular, GPS, Wi-Fi, video capture and
CAN-bus. With its multiple independent display outputs, the CQ40N series can be combined with our range of touchscreen
options to offer increased flexibility. The compact, fanless nature of the CQ40N series makes it suitable for the
enclosed spaces of a vehicle and extremely dusty environments. The CQ40N’s ruggedness is demonstrated by multiple
MIL-STD-810G tests and E-mark certification making it fully approved for in-vehicle use. Also certified CE,
FCC Class A and EN50155 compliant offering a wide range of operational use cases. The CQ40N comes with a 2-year
warranty as standard, which is extendable to 3 or 5 years.

  • Intel Celeron 3955U 2.0GHz, Intel Core i3-6100U 2.3GHz, Intel Core i7-6600U 2.6GHz up to 3.4GHz
  • Up to 16 GB DDR4 RAM
  • Single SSD only
  • VGA and dual HDMI outputs powered by the Intel Graphics
  • Optional internal 4G, GPS (DR), WLAN, Bluetooth, CAN & video capture modules
  • Dual SIM card slots for built-in cellular modem
  • 2 x digital inputs and 2 x digital outputs (supporting relay switching)
  • Optional internal backup battery (UPS) providing approx. 10 minutes of operation with no external power
  • 2 x USB 3.0 and 1 x USB 2.0 ports
  • Up to 3 x RS-232 ports
  • 2 x GbE LAN ports
  • Auto on/off with vehicle ignition, configurable shut down delays via software, low battery detection
  • 9-36V peak input voltage range
  • Regulated 12V switched output for powering accessories (2A)
  • E11 certified – fully approved for automotive use
  • -40°C to +70°C (with 0.6 m/S airflow) operating temperature range at base specification
  • MIL-STD-810G tests for shock & vibration
  • 2-year RTB warranty (extendable to 3 or 5 years)

Long-term availability

Dimensions

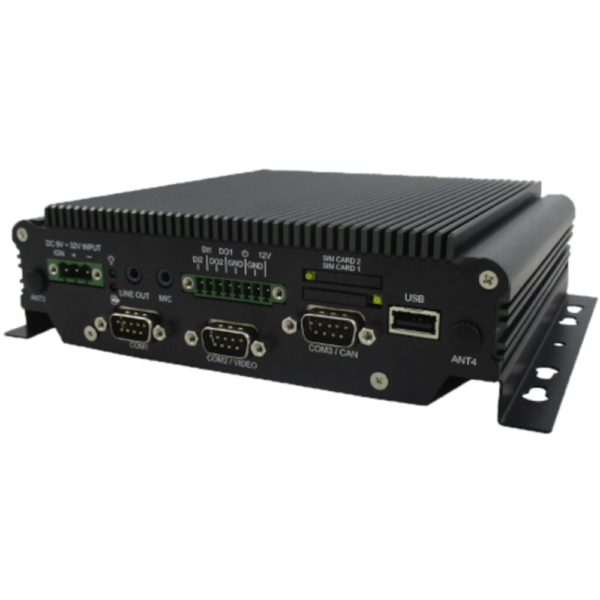

CQ41N & CQ43N

Width: 210 mm
Depth: 168 mm
Height: 54 mm

Weight: 1.4 Kg (base specification)

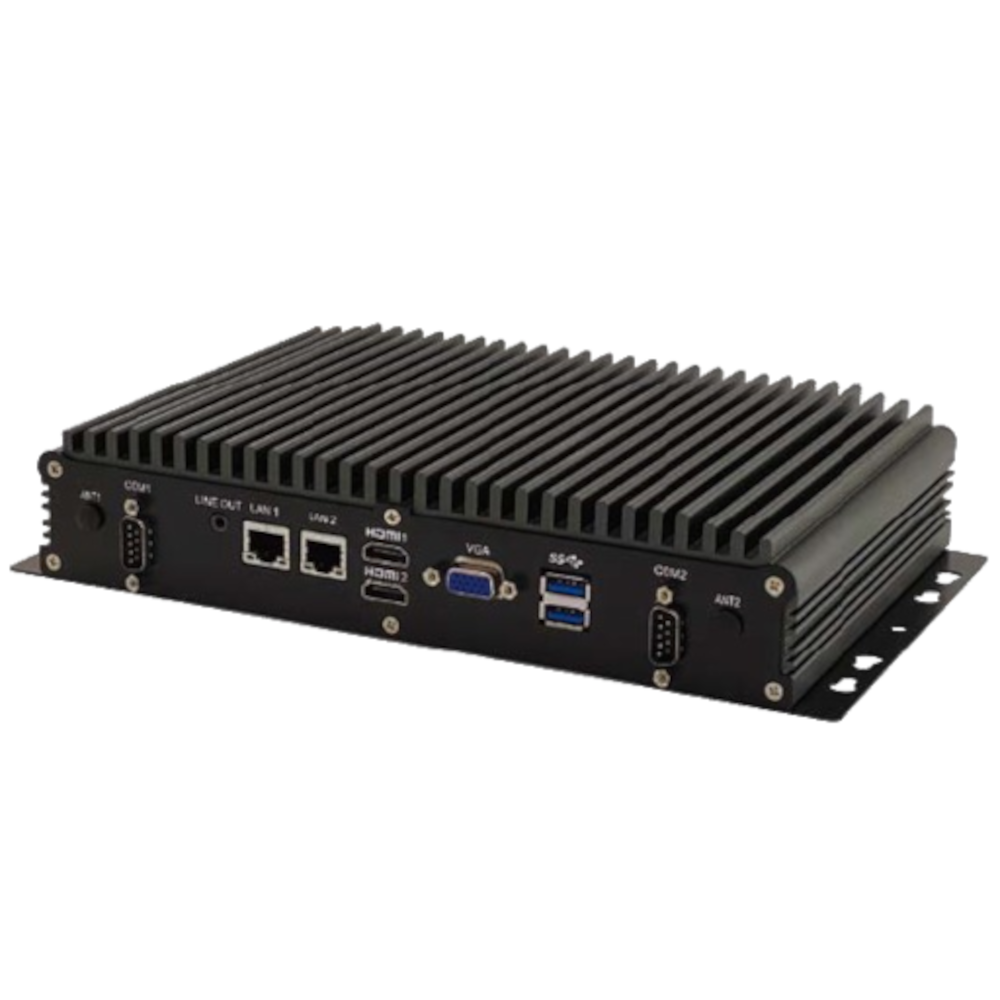

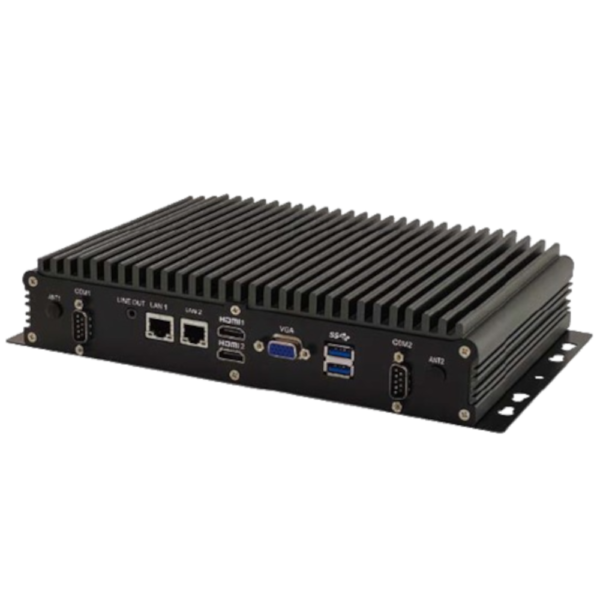

CQ47N

Width: 278 mm
Depth: 168 mm
Height: 54 mm

Weight: 2.4 Kg (base specification)

CQ40N Datasheet
